1.2 INDOOR/OUTDOOR LIGHTING OF A HOME
Specifications:
A homeowner would like to install a system capable of controlling the lighting of a stairway and outdoor entrance providing access to the home.
Outdoor Lighting: The circuit is activated at night by a twilight switch. A sensor detects any passage and activates the outdoor lighting for 2 minutes.
Indoor lighting: Two pushbuttons are situated in the stairwell: one in the entrance, the other at the top of the stairs. Their function is identical. Time-delayed (2 minutes) lighting is obtained by quickly pressing one of the buttons.
Description of the inputs/ouputs:
Model Required:
No specific condition:
SR2 B121 BD (24 VDC) for example.

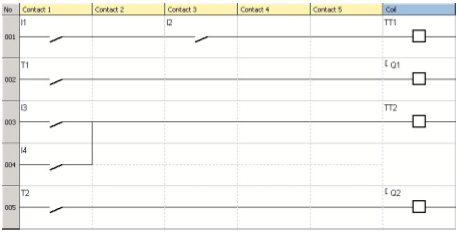

Logic diagram:
Click on the link below to access the application:
Indoor/Outdoor lightning of a home
