NOTWITHSTANDING the signs of impatience which my friend had manifested when we were passing, in our review of the photographs, from one lunar ring mountain to another, all more or less similar in appearance and characteristics, I was gratified to see that her mind was still attracted to the subject of the moon, and during the lunch she, of her own accord, began to talk of it.
“You have said so much about volcanic occurrences on the moon,” she remarked, “that I wonder why you do not call those immense mountains ‘volcanoes.’ I observe that you always speak of them as ‘rings,’ or ‘mountain rings,’ or ‘ring plains’; while to me, although to be sure I am no geologist and have perhaps no right to an opinion, they seem plainly to be just huge volcanoes and nothing else.”
“Your observation is quite correct,” I replied, “as far as superficial appearance goes, and I may add that these great rings are often called volcanoes. If we apply the proper adjective and name them ‘lunar volcanoes,’ perhaps there can be no objection to the term. But they are certainly widely different from our terrestrial volcanoes. The difference is not in size alone, although in that regard it is enormous. There is a far more significant difference, which you could hardly be expected to notice in a simple inspection of the photographs, although it is evident when once pointed out. I refer to the fact that what seem to be the craters of lunar volcanoes are not situated on the tops of mountains. They are immense plains, more or less irregular in surface, and often having a peak or a group of peaks in the center, while around these plains always extends a mountain ring, steep on the inner side, and having a gradual slope without. But most significant fact of all, the plains, or floors inside the ring, are almost invariably situated thousands of feet below the general level of the moon. If the terrestrial volcanoes were formed on the plan of the lunar ones, when we visit Vesuvius, instead of climbing up a mountain rising out of the midst of a plain and capped with a cone, having a funnel-shaped crater in the center, we should find before us a relatively low, circular elevation, on surmounting which there would appear on the inside of the circle a great basinlike hollow, far below the level of the surrounding country. In the center of this, distant from the lofty encircling walls, would be seen a conical hill with smoke and vapor issuing from a vent at its summit. The top of this crater hill would be lower than the rim of the basin-shaped hollow, so that the whole volcano with its immediate surroundings would be inclosed and shut off from the environing upper world by the sides of the basin. While you finish your coffee I will make a sketch which may render this difference between lunar and terrestrial volcanoes evident at a glance.”
Lunar Volcano, in Section.

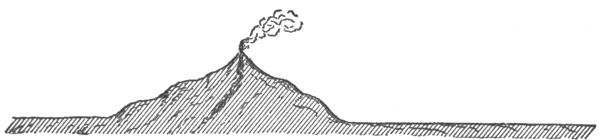

Terrestrial Volcano, in Section.
Accordingly, after a few minutes, I presented to her these two diagrams, remarking that it should be borne in mind that the two sketches were not made on the same relative scale. “I was compelled,” I said, “to change the true proportions in the section of the lunar volcano, for if I had drawn them as they are in fact, the width of the basin would have been enormous in proportion to its depth. You will recall that I told you that such rings as Albategnius and Maurolycus are a hundred miles and even more in diameter, while their depth does not exceed two or three miles. It results from this necessary falsification of proportions in the sketch that the terrestrial volcano, although so widely different in form, appears comparable in magnitude with the lunar one. But the fact is that you could take a dozen of the largest volcanic mountains on the earth and throw them into one of the great lunar rings without filling it.”
“I am the more astonished by what you say,” remarked my friend, “because you have already told me that the moon is so much smaller than the earth. How does it happen, then, that her volcanoes are so much larger? I should think that in a little world all things would be small in proportion.”
“It is quite natural to think so,” I replied, “until you reflect upon the consequences of the smaller force of gravitation on a small world. I told you last evening that gravitation on the moon, is only one sixth as powerful as it is on the earth, and you will recall that one consequence which I pointed out was that you would weigh only twenty pounds if you were on the moon. Since the same reasoning applies to all objects in the lunar world, it is clear that a similar force exerted there would be able to produce enormously greater effects, as for instance in the formation of vast hollows or depressions, by violent explosions, the products of which would be thrown to immense distances. Some selenographers, which is a term applied to those who study the features of the lunar world, have suggested that in this cause alone is to be found the explanation of the giant lunar ring mountains. At some remote period of the past, according to them, the volcanic forces of the moon reached a maximum of activity and energy. The lava, cinders, ashes, and other products of ejection, were hurled to a height of scores of miles, and when this fell back at a great distance from the centers of eruption these were piled up in huge rings, fifty, eighty, or a hundred miles in diameter, while the surface of the moon within the rings sank in consequence of the withdrawal of the material thus ejected. To account for the existence of the central mountains so often found in the middle of the rings, it has been suggested that at a much later period, when the volcanic energy had become comparatively insignificant, as a result of the cooling of the interior of the moon, less violent explosions, not greater than many that have occurred on the earth, took place, and by these the central peaks were formed.”
“You are going to think me too romantic, or too imaginative, again,” said my friend, with a smile, “but I cannot prevent myself from wondering what the inhabitants of the moon did and thought while all those marvelous things were happening.”
“I have not said that there were inhabitants of the moon.”
“No, but you have confessed that there might have been inhabitants, some time, and I should like to know whether they were there when those terrible volcanoes were formed.”
“If they were,” I replied, “they could not have survived such a universal upheaval as the surface of the moon has undergone. You have seen in the photographs that the great rings and smaller craters are scattered thickly over the moon. It is true that comparatively few are found in the level expanses called ‘seas,’ but if those regions were covered with water they could only have been inhabited by beings provided with gills and fins.”
“How long ago did these explosions occur?”
“I cannot tell you, except that it must have been many ages in the past; so long ago, indeed, that the whole course of human history seems but a day in comparison.”
“Then,” said my friend with animation, “there has been time enough since that dreadful period for inhabitants to develop upon the moon, has there not?”
“Yes, time enough, perhaps, provided that sufficient water and air and other vital requisites remained after the exhaustion of the volcanic energies.”
“Oh, let us say that they did remain. I am eager to believe that the moon has not always been so desolate as she appears at present.”
“Very well, you are at liberty to believe that if you like. No astronomer is likely positively to contradict you, although he may smile a little incredulously. Besides, as I have already told you, there are certain rather inconclusive indications of some kind of life, and of some kind of activity, still on the moon.”
“Please show them to me, then, or tell me about them. Perhaps I shall find them less inconclusive than you do.”
“Everything in its turn,” I replied. “We shall come to the indications that I have spoken of after we resume the inspection of the photographs.”
“Then I am ready to resume at once.”
Accordingly we returned to the table and the photographs under the pleasant shade of the elm. Taking up the photograph numbered 7, I remarked that it exhibited the moon as it appears a little after First Quarter; that is to say, a trifle more than half the face turned toward the earth is in the sunlight. I called attention once more to the six “seas,” which we had already remarked, and to the continued conspicuousness of Theophilus and its companions, a little above the middle of the visible hemisphere.
“You observe now,” I continued, “how the rotundity of the lunar globe begins to manifest itself as the sunlight sweeps farther eastward. The crescent shape is gone and the line between day and night begins to be bowed outward, convexly. The Mare Crisium is particularly well defined, and also the diamond-shaped region called the Palus Somnii. With the sun so nearly vertical above it, the remarkable peak of Proclus, between the Palus Somnii and the Mare Crisium, has become very brilliant. In a telescope you would see it glowing almost like a star. You observe also that several long, straight, bright rays proceed from it in several directions.”
“All the more reason, it seems to me,” said my friend, “why your unimaginative astronomer, Riccioli, should have named it for some brilliant gem instead of attaching to so dazzling an object the prosaic designation of ‘Proclus.’”
“After all,” I replied, “what’s in a name?” Now that you are familiar with the appearance of Proclus, its name will henceforth call up to your mind an image as brilliant as if it had been named ‘Mount Diamond’ or ‘Mount Amethyst.’”
NO. 7. JULY 2, 1903; MOON’S AGE 7.24 DAYS.
“Pardon me,” said my friend, “but it was not of names like those that I was thinking. Observe how he who named the neighboring Palus Somnii, ‘Marsh of a Dream,’ exhibited an exquisite delicacy of fancy. It suggests something indefinitely strange, romantic, imaginative. That unknown astronomer, unknown at least to me, put a little of himself, a little of his inmost mind, into the name, and I thank him for it. I shall never forget the ‘Marsh of a Dream’ in the moon. It will haunt my own dreams. I shall be all my life seeking and never finding its meaning.”
“Since you are in so poetic a mood,” I responded, “I rejoice that besides its bald facts, its fireless volcanoes, and its dried-up plains, the moon possesses many things that can stir the imagination of the most sentimental observer. But, in order that we may not wander too far from the paths of science, let me recall your attention to the photograph. We have been going over ground already trodden by returning to the neighborhood of the Mare Crisium. I shall now lead you back to the terminator, where we shall find a little that is new. Still nearly hidden in night we perceive many great rings on which the sun is beginning to rise, and four of the most important ranges of mountains are coming into view. One of these, on the southern border of the Mare Serenitatis, is visible throughout its entire extent. It forms a portion of the coquettish ornaments with which the Moon Maiden has decorated her hair, as we shall see clearly in the next photograph. This range is named the Hæmus mountains. Near its center, quite at the edge of the ‘sea,’ is a bright crater ring, one of the most conspicuous on the moon. It is called Menelaus.”
“Menelaus?” exclaimed my friend. “Ah, then Riccioli did not confine his favoritism to the astronomers and philosophers in putting their names in the moon. Menelaus, if I remember my classical reading correctly, was the husband of Helen of Troy.”
“Yes, the brother of Agamemnon himself. You must admit that Riccioli occasionally felt his imagination a little awakened. He was not altogether destitute of the spirit of poetry.”
“But did he also put Helen in the moon?”
“I am sorry to say that he did not. It would have been a very suitable abode for her. However, if you like, you may recognize Helen in the Moon Maiden herself.”
“Thank you, that will be, indeed, an unexpected pleasure.”
“Meanwhile allow me to point out to you that there is a curious light streak, very faintly shown in the photograph, which crosses the Mare Serenitatis from Menelaus to the opposite shore, and reappears more distinctly, on the lighter-colored plain toward the north. This streak comes all the way from a great ring mountain named Tycho in the southern part of the moon. It is more than 2,000 miles long, and is one of the greatest mysteries of the lunar world. Tycho, which lies just on the sunrise line, is not well seen in this photograph. It has a great number of these strange streaks or rays proceeding from it in all directions. We shall study them in one of the photographs which are to come. One word in regard to the plain north of the Mare Serenitatis of which I have just spoken. It, too, has a name that is calculated to appeal to your lively imagination. It is called the Lacus Somniorum, which if my knowledge of Latin is correct, means ‘Lake of the Sleepers.’”
“Then your old friend Riccioli certainly did not bestow the appellation.”
“No, it was one of his more fanciful, or, if you prefer, more poetical predecessors, perhaps the same who imagined the ‘Marsh of a Dream.’”
“Oh, that gives me another reason to think of him with admiration and gratitude. He, at least, had a soul that rose above mere prosaic facts.”
“Perhaps. But do not think too lightly of the facts of the moon. After all the human mind must base itself upon the solid ground of fact. Without that we should become mere dreamers, and be suited only to inhabit your favorite ‘Marsh.’”
“The other mountain ranges of which I have spoken,” I continued, “are faintly distinguishable eastward from the Mare Serenitatis. They are the Apennines, the Caucasus, and the Alps. But perhaps we had better turn at once to photograph No. 8 where they are much more clearly seen, because the sunrise there has advanced a couple of hundred miles farther east.”
“But, dear me, how slowly the sun rises on the moon! Was this photograph taken a day later than the other?”
NO. 8. AUGUST 31, 1903; MOON’S AGE 9.22 DAYS.
“Almost exactly two days later. When it was made the moon was nearly nine and a quarter days old, and its age at the time No. 7 was made was only seven and a quarter days. But, owing to the effects of libration, an explanation of which I have put into a note for your private reading when you feel like it, [see p. 57, footnote], the difference of phase amounts to less than two days. You are right, however, in remarking that sunrise is a very slow process on the moon. It requires about two weeks to pass from the western side of the moon to the eastern side, and both day and night at any point on the moon last about a fortnight. This results from the fact that, as I have told you, the moon does not turn rapidly on its axis like our own globe, but keeps always the same side directed toward the earth. Accordingly, a lunar day and night are together about a month long.”
“And was it so when, as I must persist in believing, there were inhabitants on the moon?”
“Probably, although it may have been shorter then. The consequences of these excessively long days and nights would be very serious to beings fashioned upon the terrestrial plan. In the practical absence of an atmosphere the heat of the sun’s rays, pouring down without interruption and without the intervention of any clouds or vapors for fourteen days at a time, must be simply overpowering. And then, during the equally long night that ensues, the radiation into open space must quickly leave the surface of the moon exposed to the most frightful degree of cold, comparable with the absolute zero of empty space!”
“But think, what a merciless environment you are picturing for my inhabitants of the moon. Please do not forget that I insist that their comfort shall be considered.”
“Oh, as for that, you know you were content a little while ago to relegate your inhabitants to a remote period in the past, after the volcanic fury of the lunar world had ceased, and before its present airless and waterless condition had supervened. Possibly at that time things were not so uncomfortable for them. They may have had clouds to temper the sunshine, rains to cool the days and dews the nights, and shady parks like yours for philosophic and scientific contemplation.”
“Do not forget the poets.”
“Certainly not. But is not the moon herself the very spirit of poetry? What in nature is more poetical in its suggestions than the moon wading through fleecy clouds on a serene summer’s night? But pardon me, we are forgetting my mountains, upon which I insist as strongly as you do upon your inhabitants. The mountains have this advantage that they are very real, and no exercise of the imagination is required to bring them clearly before us. In photograph No. 8 they are all visible. The Apennines, the greatest of them, start from the eastern end of the Mare Serenitatis, and run in a slightly curved line southeastward, a distance of about 450 miles. They form the singular ornament which the Moon Maiden (or shall we now call her Helen of Troy?) wears upon her forehead. Turn the photograph upside down so that the moon is presented as the naked eye sees it in the sky, and you will find that, although he aimed only to be scientifically exact and to exclude everything but the real facts, Mr. Wallace has produced an excellent picture of this wonderful face in the moon.”
“But what is that face?”
“It is humanity projected upon the moon. It is a lesson on the powers of the imagination. We perceive a certain collocation of mountains, peaks, and plains on the disk of the moon, and our fancy sees in them a human likeness. We should congratulate ourselves that we are able to do this. It is a kind of proof of superiority. Many brute animals do not recognize even their own likenesses in a mirror, much less in a picture. But the Moon Maiden is perhaps as real as your inhabitants.”
“I am not prepared to confess that yet.”
“Very well, let us go on. The lunar Caucasus is the broader, but shorter, range of mountains at the northeastern corner of the Mare Serenitatis, and the Alps extend eastward from the Caucasus to a conspicuous dark oval close to the terminator, which is one of the most remarkable formations on the moon, and which, when we come to study it in one of the larger photographs, will probably interest you deeply because it is one of the places where recent studies have discovered indications of what may possibly be some form of lunar life. I wish now to direct your attention to the central and upper parts of the photograph. Running downward from the south, a little west of the terminator, you will perceive a double row of immense rings and ring plains. They are not only remarkable individually, but quite as remarkable for their juxtaposition in two long ranges. Among them, in the westernmost row, are three or four whose names you may remember—Maurolycus, Stöfler, Aliacensis and Werner. Still larger ones are included in the eastern row, the largest of all being at the bottom. It is rather a hexagon than a circle. It is 115 miles in diameter, and the flat plain inside the bordering mountains contains about 9,000 square miles. By close inspection you will perceive a small crater mountain near the northwestern side. This immense walled plain is named Ptolemæus after a great astronomer of antiquity, the author of the Ptolemæic system, which treated the earth as the center of the universe.
“Still more interesting are the things visible farther south. You cannot fail to remark a very beautiful ring, a perfect circle, brightly illuminated on the eastern side, and having a bright point symmetrically placed in the exact center. It is named Tycho, after another great astronomer, and is generally regarded as the most perfect crater ring on the moon. It is 54 miles in diameter, and its walls are about 17,000 feet high on the inner side, more than a thousand feet higher than Mt. Blanc, the giant of the terrestrial Alps. Its central mountain is 5,000 feet high. The most remarkable thing about Tycho is the vast system of ‘rays’ or bands which seem to shoot out from it in all directions, traversing the surface of the moon, north, south, east, and west for hundreds of miles, and never turning aside on account of any obstacle. They lie straight across mountains, valleys, and plains. We have already seen one of them, the largest of all perhaps, crossing the Mare Serenitatis and the Lacus Somniorum, in the northern hemisphere of the moon. Nobody knows exactly what these rays mean or what they consist of. We shall from this time on see them in all the photographs that we examine, and later I shall have more to say about them, and the speculations to which they have given rise.
“About half way between Tycho and the south pole of the moon, you will see an enormous irregular plain, with lofty broken walls, interrupted by a number of crater rings. Several similar rings also appear in the interior of the plain. If Tycho is the most perfect in form of the lunar crater rings, this great inclosure, which is named Clavius, is the finest example of the walled valleys. It is more than 140 miles across, and covers an area of not less than 16,000 square miles. Two of the rings within it, which seem so small in comparison, are 25 miles across. A smaller walled plain, yet one of really immense size, is seen half way between Tycho and Clavius, and farther from the terminator than either of them. This is Maginus, and it possesses the peculiarity that at full moon it practically disappears!”
“But how can that be possible? I see nothing behind which it can be hidden.”
“It is the sunlight that hides it. You must have noticed already that the rings and mountains are best seen when at no great distance from the terminator, because there the sunlight strikes across them at a low angle, and their shadows are thrown sharply upon the adjoining slopes and levels. Look at the western part of the moon in the photograph before us. Many of the huge rings and walled plains that were so striking in appearance when the sun was rising upon them are now barely visible. Langrenus and Petavius, for instance, have become no more than whitish blotches, and even Theophilus is no longer conspicuous. The reason is because when the sunlight falls vertically upon any part of the moon there are no shadows there, and without shadows there can be no appearance of relief. Then the mightiest mountains are almost lost from sight in the universal glare. The same thing would be apparent if you were suspended above the earth at a great height in a balloon and looking down upon the tops of the snowclad Rockies. Without shadows serving to reveal their true character and to throw their outlines in silhouette upon the adjacent plains, they would resemble only white spots and lines on the generally darker expanse of the continent. But Maginus is an extreme case. Owing to the relatively small elevation of its walls, and their broken-up state, and owing also, probably, to a similarity of color between the mountain ring and the inclosed plain, when the light is vertical upon them, as at the time of Full Moon, they blend together and become barely distinguishable from one another, and from the surrounding surface of the moon.
“Take now photograph No. 9. The age of the moon here is actually less than it was in the photograph that we last examined, yet, in consequence of libration, which has caused the moon, in effect, to roll a little to one side, the sunlight is farther advanced toward the east, and we see many features of the lunar world that before had not yet emerged from night. Clavius you will notice is much more fully illuminated. See how distinctly the shadow of its vast western wall is cast upon the floor of the valley within, while the opposite eastern wall with its immense cliffs and precipices glows in full sunshine, its shadow, thrown toward the east, blending with the darkness of night still covering that side of the moon. Southeast of Tycho, which is beautifully shown here, two other great walled plains have come into view. The uppermost of these is Longomontanus and the other Wilhelm I. For a considerable distance below these (toward the north) the surface continues broken with rings and craters, but at length these give place to a dark, level expanse. This is a part of the Mare Nubium, or ‘Sea of Clouds.’”
“Not quite so romantic a name as some of the others,” remarked my friend, “but still I think I can be sure that Riccioli had nothing to do with the selection. There is certainly something poetic in the idea of a sea of clouds.”
“It is a very beautiful region when examined with a telescope,” I continued, “and its mountainous shores contain many interesting formations. Farther north, you will observe, near the terminator, and apparently lying in the midst of the Mare Nubium, a large ring, as perfect in form as Tycho itself. This is a very famous object, and it bears the name of the great astronomer Copernicus, who overthrew the Ptolemæic system and established in its place the true idea of the solar system, namely, that the sun is its center, while the earth and the other planets revolve as satellites around him.”
“Surely,” said my friend, “Copernicus deserved to have his name placed in the moon, and very conspicuously, too.”
NO. 9. AUGUST 2, 1903; MOON’S AGE 8.97 DAYS.
“It could not have been made more conspicuous,” I replied, “for the situation of the great ring mountain called Copernicus, in the midst of an immense level expanse, makes it one of the most marked features of the lunar world. Copernicus is the subject of one of the larger photographs that we are going to examine later, and I reserve a description of its peculiarities. North of Copernicus you will observe apparently a continuation of the Mare Nubium. But it is really another ‘sea’ that we are looking upon there, the Mare Imbrium, ‘Sea of Rains.’ The baylike projection that runs out into the bright highlands west of Copernicus bears the name of the Sinus Medii, ‘Central Gulf,’ and the one just below it is the Sinus Æstuum, ‘Gulf of Heats,’ which is certainly suggestive of dog days on the moon. Observe that the Sinus Æstuum merges on the west with a dark, oval area, which is called the Mare Vaporum, ‘Sea of Mists.’ It is one of the darkest districts on the moon. If you will now turn the photograph upside down you will find that the Sinus Medii constitutes the dark eye of the Moon Maiden, while the Sinus Æstuum and the Mare Vaporum form that portion of her hair which droops upon her forehead.”
“Why not frankly call it frizzed?”
“Because I feared that you would not consider that a sufficiently poetic term.”
“But I find poetry enough in the names ‘Gulf of Heats’ and ‘Sea of Mists.’ My admiration for the man who could think of such appellations continually increases.”
“Then please reverse the photograph, for we must not lose ourselves in dreams. You will notice that the range of the lunar Apennines runs between the Mare Vaporum and the Sinus Æstuum on one side, and the Mare Imbrium on the other. The entire chain of the Apennines is beautifully shown here. They are exceedingly steep on the side facing the Mare Imbrium, and gigantic peaks standing upon their long wall cast immense shadows over the ‘sea.’ Their southwestern slopes are comparatively gentle, rising gradually from the level of the Mare Vaporum. At their upper or southern end, in the direction of Copernicus, they suddenly terminate with a beautiful ring, which is called Eratosthenes. This is a fine example of the disk or cup shape of the lunar volcano. The bottom of Eratosthenes lies 8,000 feet below the level of the surrounding Mare, while peaks on its wall are as much as 15,000 or 16,000 feet in height. Between the lower end of the Apennines and the upper end of the Caucasus Mountains a strait opens a broad, level way between the Mare Imbrium and the Mare Serenitatis. On one of the large photographs these two ‘seas’ and the strait connecting them are represented in all their picturesque details, as you will see when we come to study them. I promise you at that time a free rein to your imagination and plenty of room for its flights. On the northern border of the Mare Imbrium and close to the terminator we see once more the remarkable oval valley to which I referred when pointing out the lunar Alps, and which bears the name of Plato. I call your attention to it and also, again, to Copernicus, in order that you may compare their appearance here with that which they present in the next photograph, taken when the moon’s age was eleven and three-quarter days.”
