CHAPTER 2
Arm-and-Hand Signals for Ground Forces
2-1. General
Signals illustrated with a single arrowhead indicate that the signal is not continuously repeated; however, it may be repeated at intervals until acknowledged or the desired action is executed. Signals illustrated with double arrowheads are repeated continuously until acknowledged or the desired action is taken. Signals are illustrated as normally seen by the viewer. Some signals are illustrated in oblique, right angle, or overhead views for clarity.
2-2. Signals to Control Vehicle Drivers and/or Crews

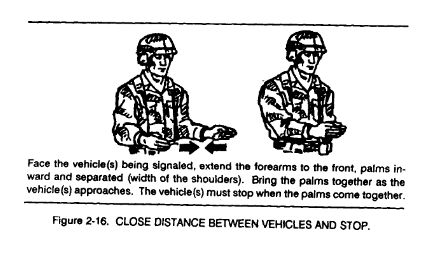

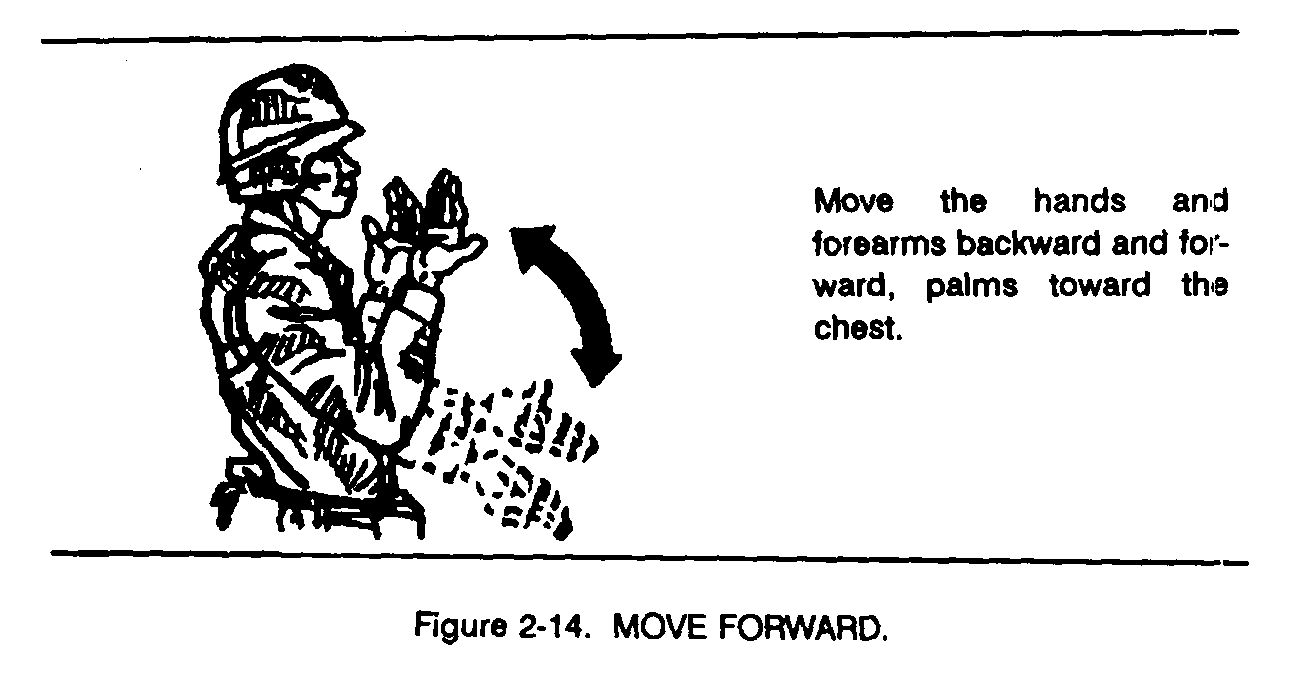

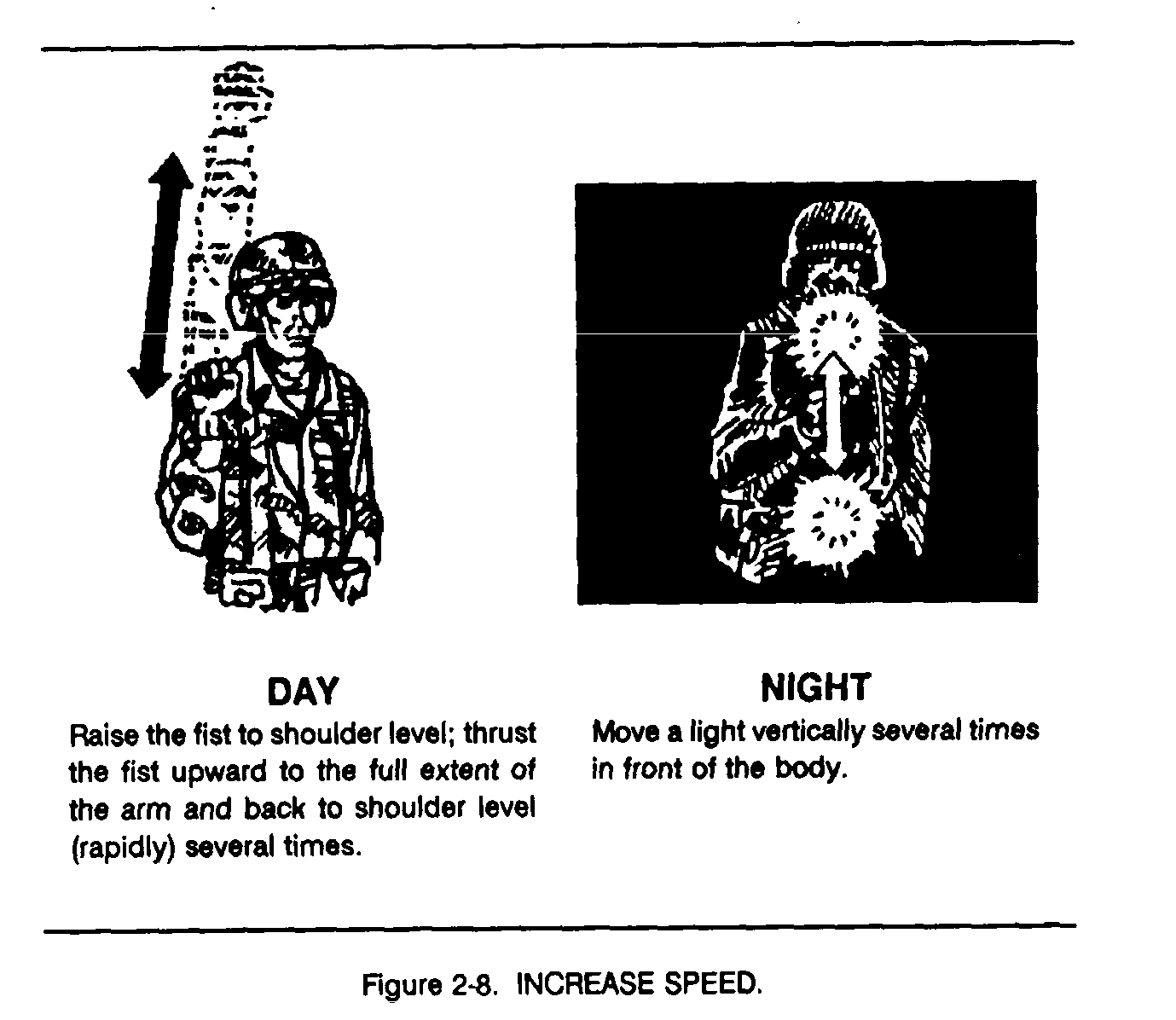

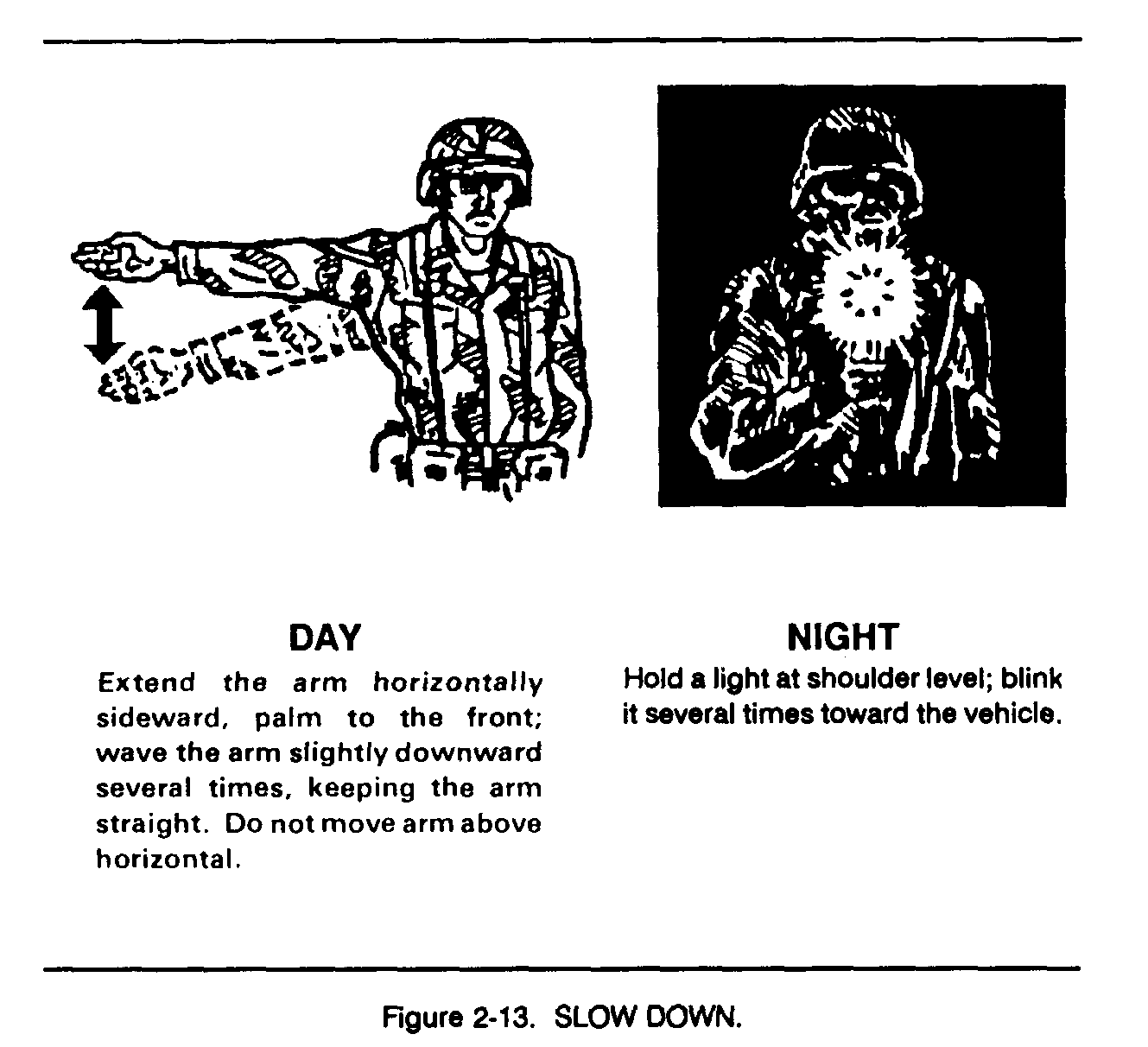

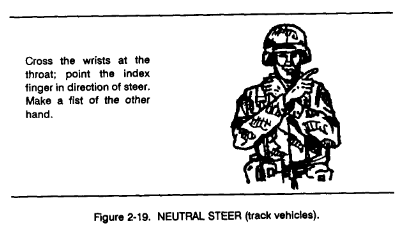

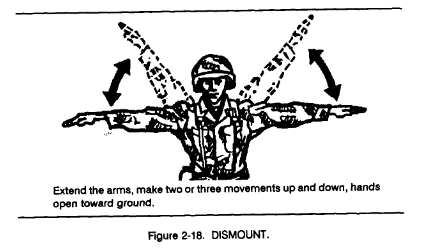

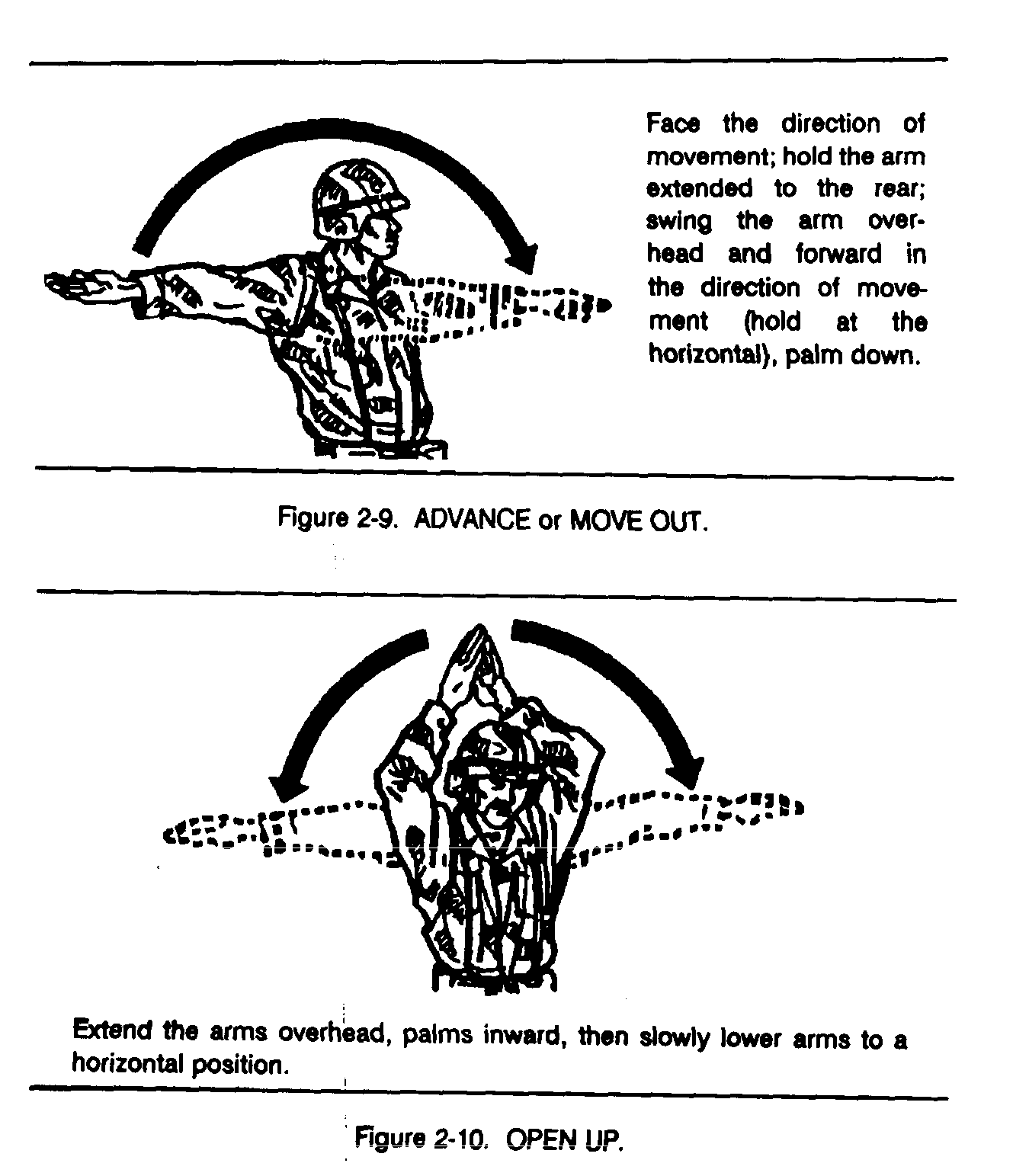

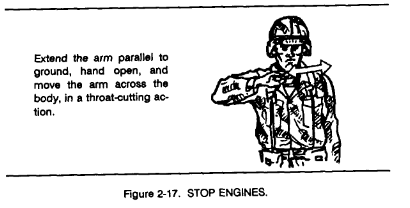

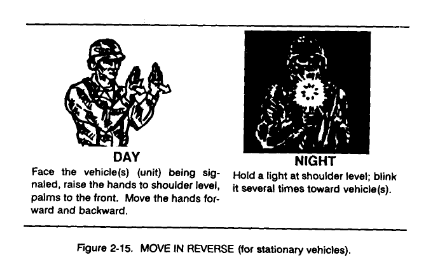

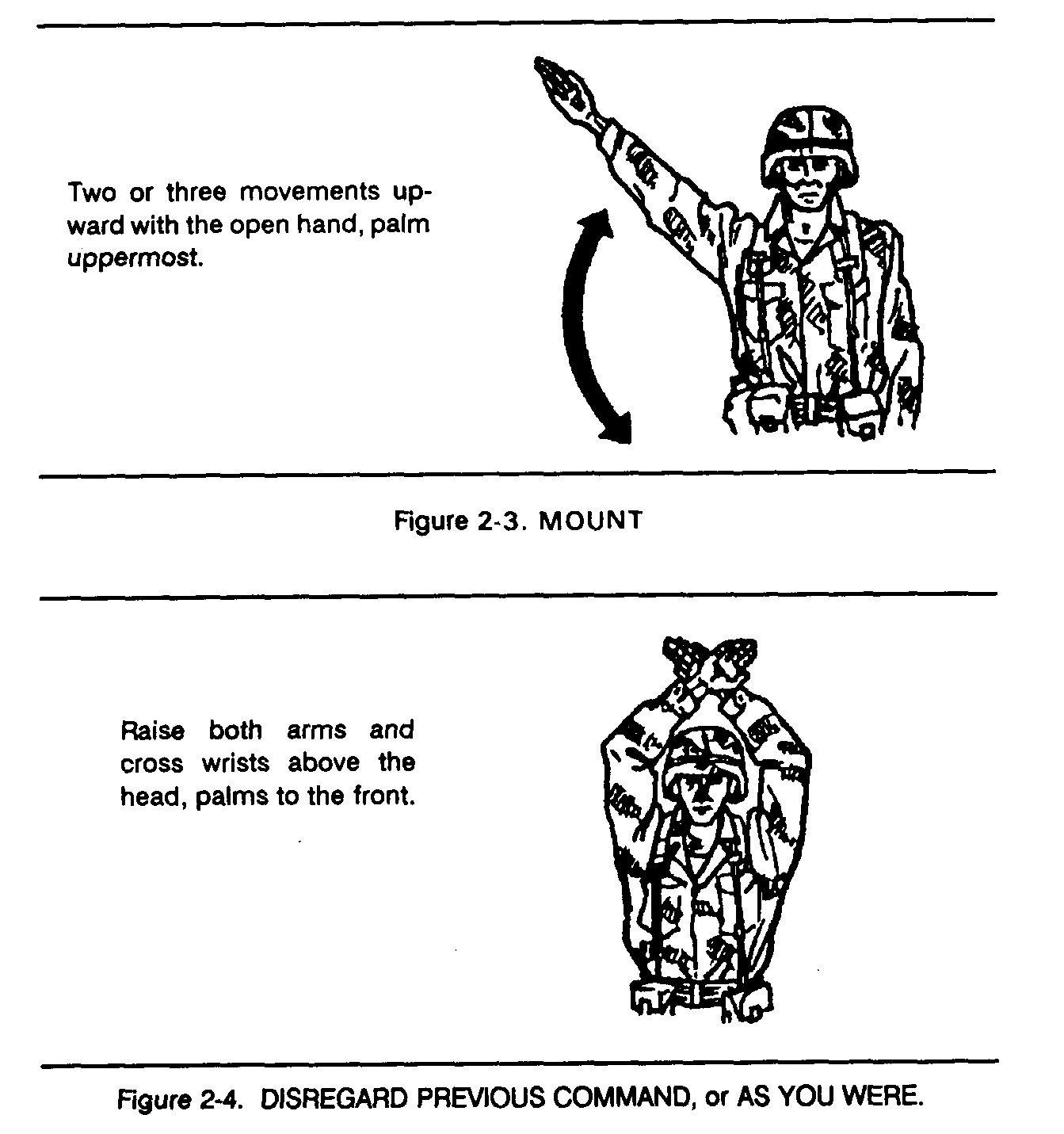

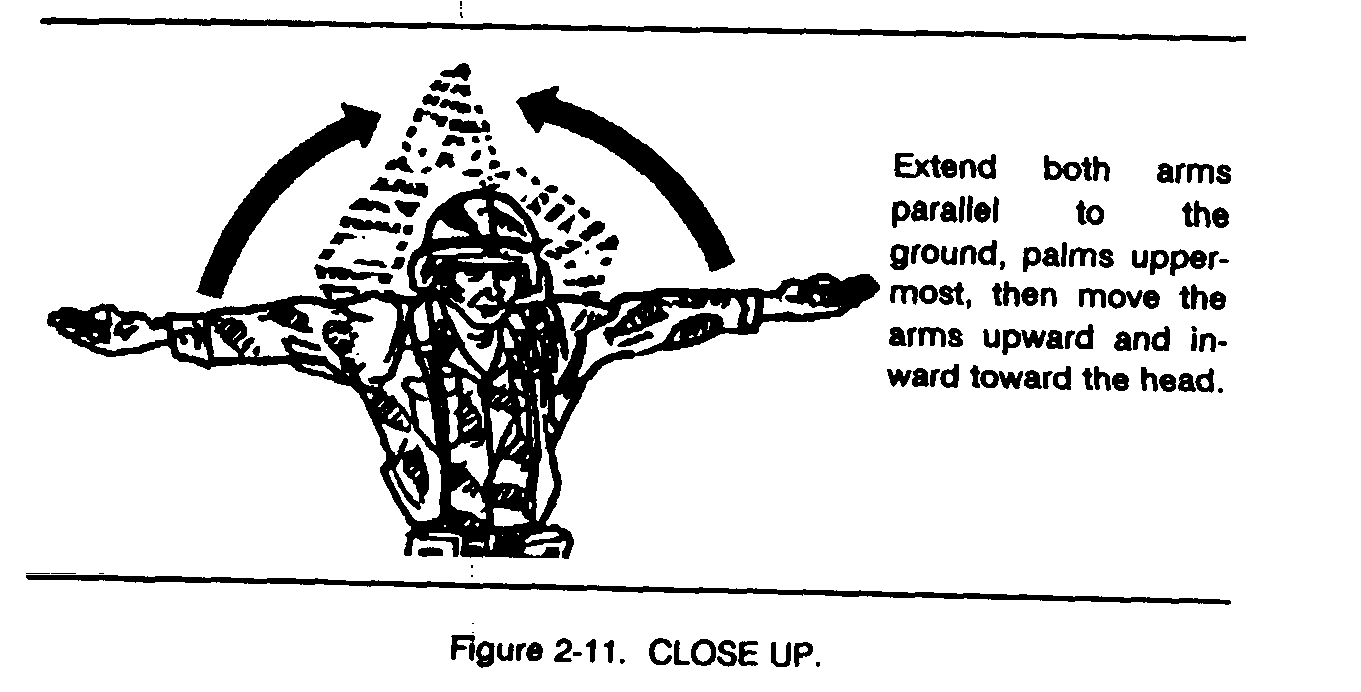

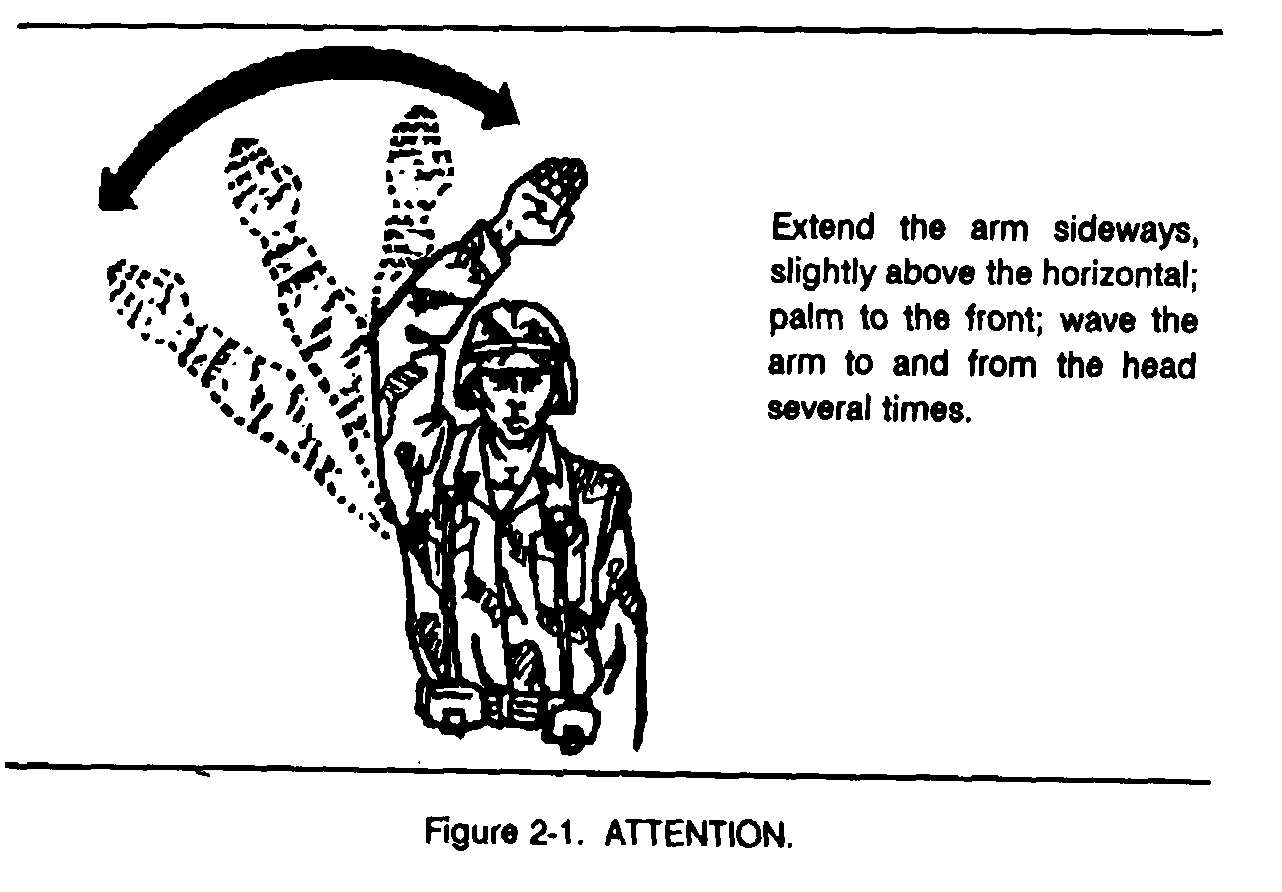

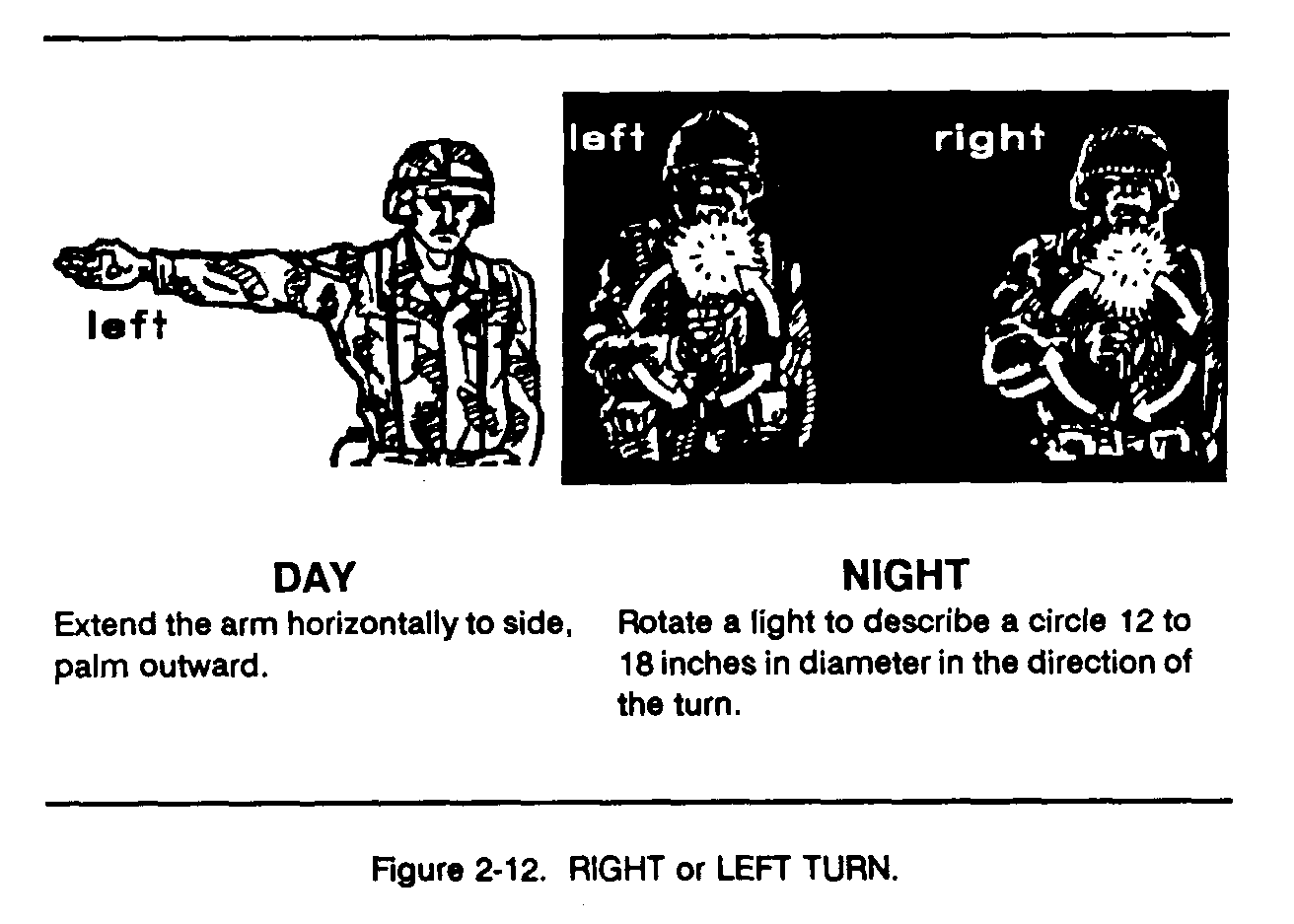

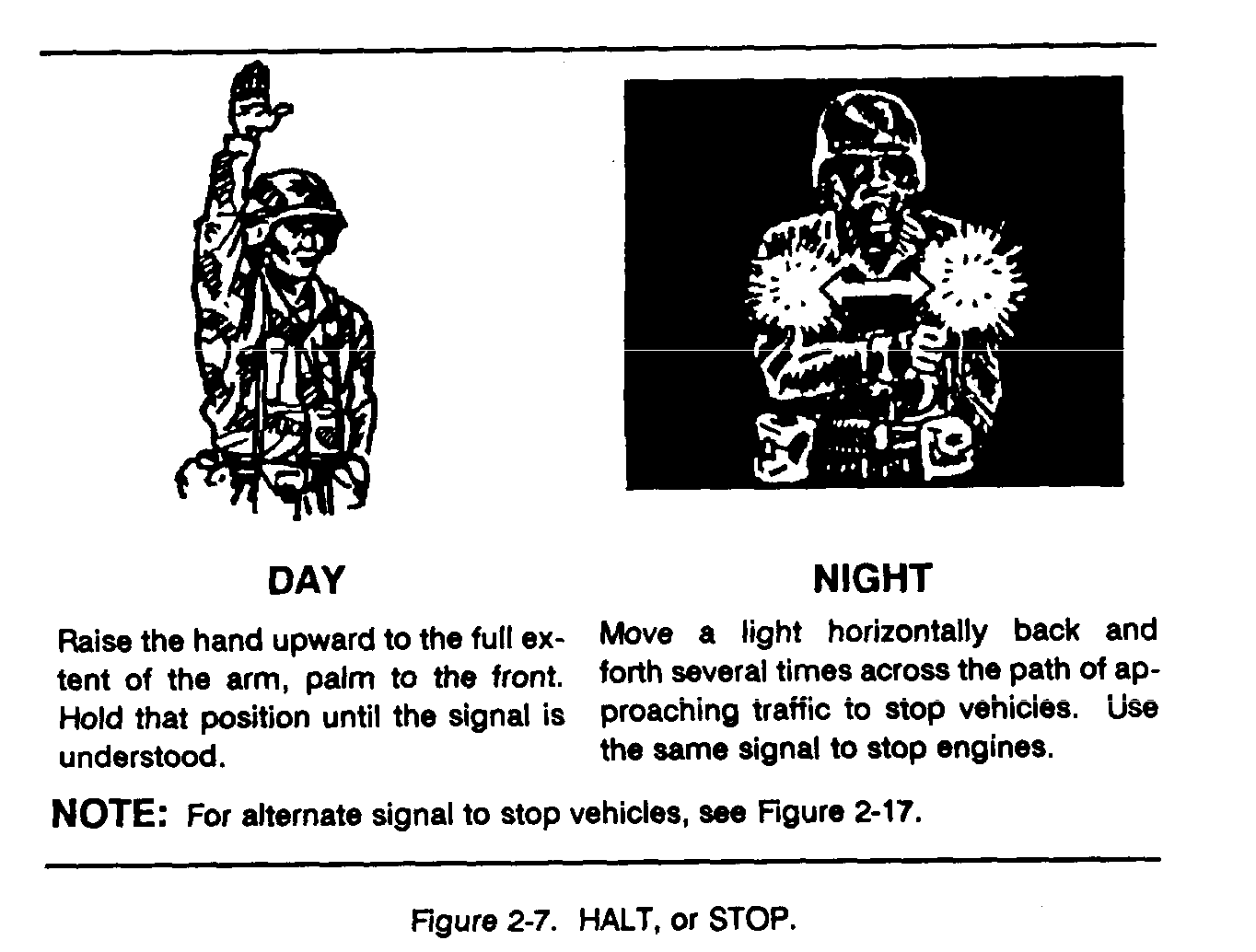

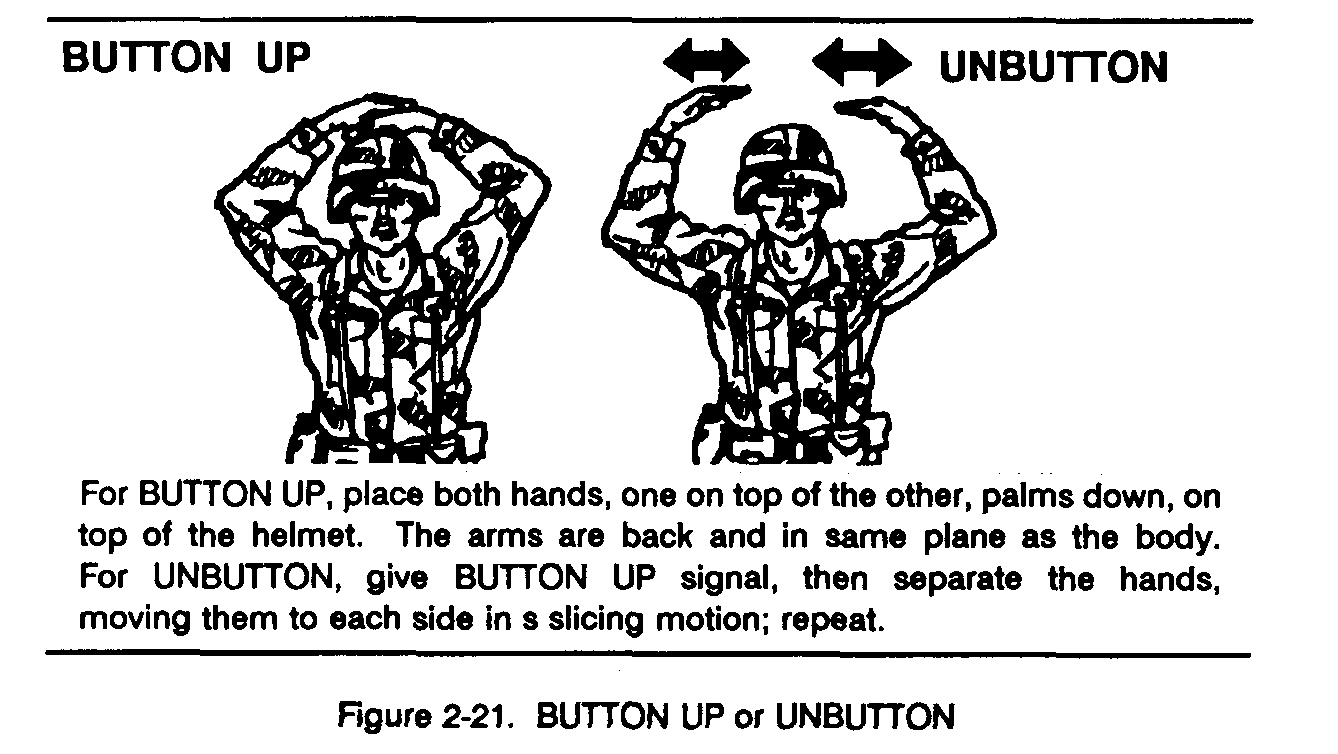

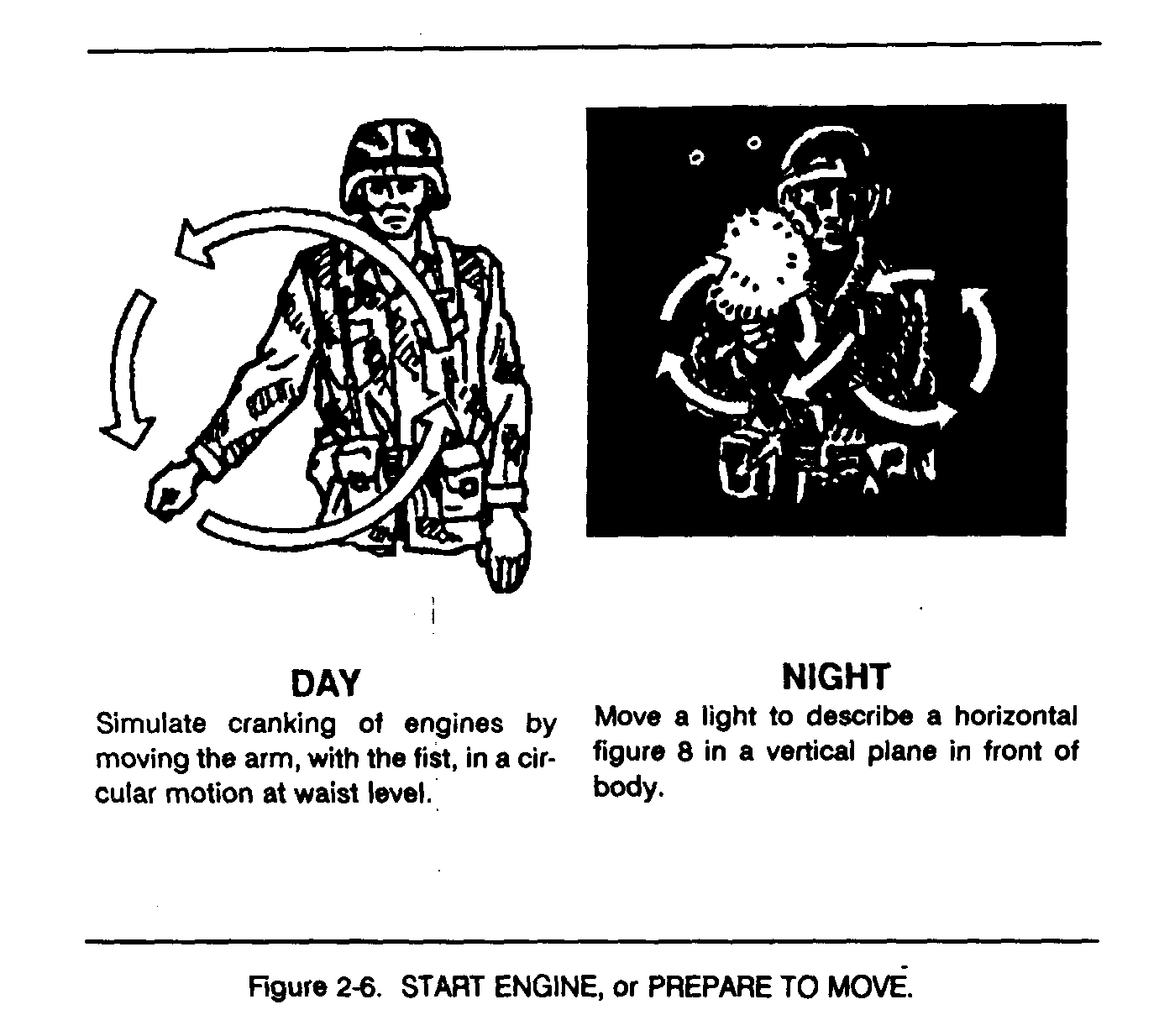

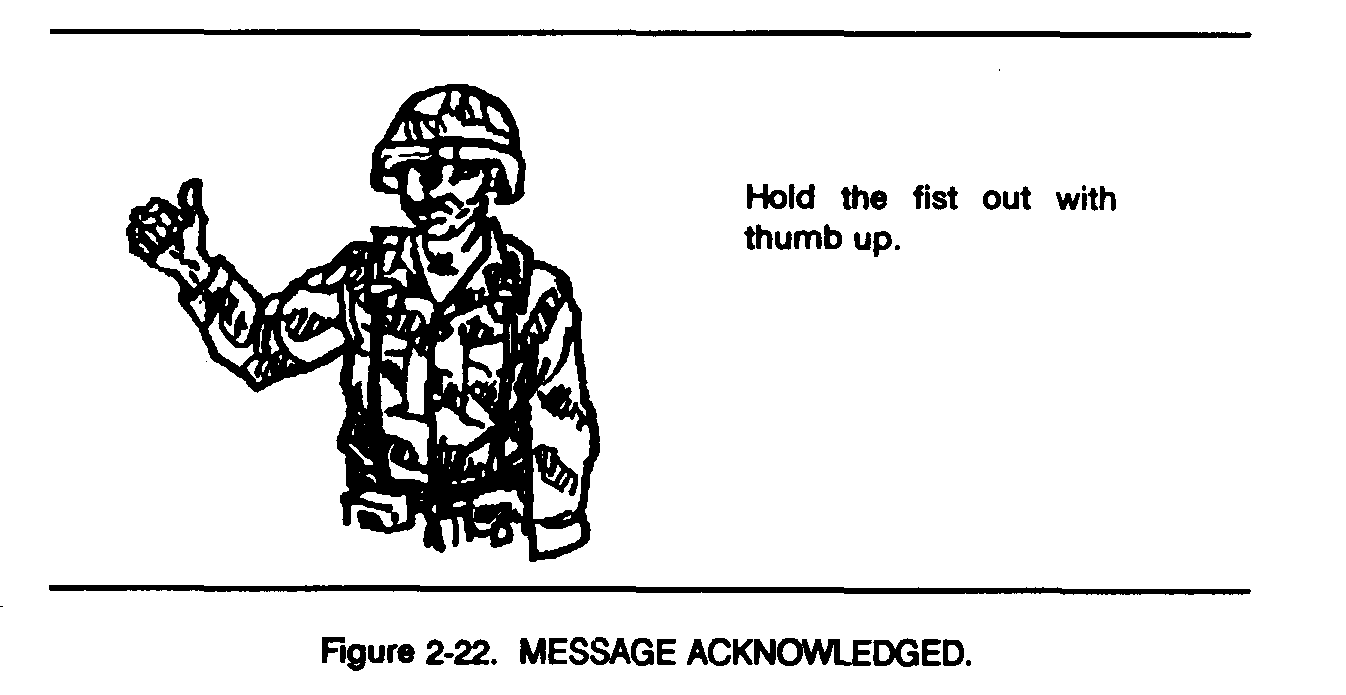

These are the arm-and-hand and light signals used to guide and direct vehicles. Flashlights are used at night to direct vehicles. Blue filters should be used whenever possible in order to preserve the driver's night vision. Chemical lights can also be used and have less effect on the driver's night vision (Figures 2-1 through 2-22).
