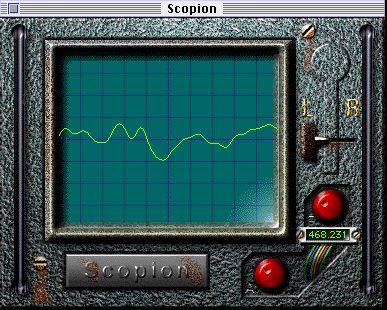

The Scopion is an on-board oscilloscope, that analyzes the left or right side of a stereo input signal and displays the waveform contents in real time. It must be used as a Master Effect. Since the Scopion uses a custom interface, you have to click the Edit button in the Master Effects window to use it. There are three parameters:
L/R SwitchTime Scale
Gain Scale Clicking this switch allows you to choose between displaying the left and right side of the stereo input signal.
This knob (directly below the L/R switch) allows you to scale the waveform horizontally.This knob (at the bottom of the Scopion window) allows you to scale the waveform vertically.
• If you click the Scopion label plate below the display, a help screen will be shown, explaining the functionality of the parameters in the window.
