CHAPTER 9: THE PERIODIC TABLE

Groups and Periods

Well, hello again. We have been talking extensively about various elements on the periodic table but we haven’t paused to consider how these elements occur and in what ways they relate to one another. In understanding these, the world of chemistry

becomes crystal clear. In understanding the periodic table we begin to see how and why elements and compounds behave in the ways they behave. We study not just the

physical attributes of these elements but their chemical characteristics as well. Enough talking, let’s get right on the task. Below is the periodic table once more to aid us in our discourse.

I bet that being a sharp thinking person you must have at some point in our discussion wondered about the arrangement of the table. Are the elements placed at random

locations or is there some method to the madness of this table of letters and numbers?

Even though chemistry seems like madness, there are always precise reasons for all that we do as is characteristic of all sciences. For instance if you look up at the table you find that there are rows and columns. The rows move from one side to the next horizontally on the page, while the columns go up and down vertically on the page. The horizontal arrangement constitutes the periods while the vertical arrangement makes 201

Image 227

the groups of the periodic table. Don’t be fooled by the seeming simplicity of this table that looks more like a calendar because a lot of interesting things are going on here.

The periodic table is an organized arrangement of

chemical elements in rows and columns on account

of increasing atomic numbers.”

This definition definitely brings something else to mind to consider and that is the concept of atomic numbers.

Figure 9-1Dimitri Mendeleev

I know what you’re thinking and even though we don’t have to say it my big mouth will do just so-That is an intimidating looking man. Yes, yes he is but do not be carried away by how he makes you want to confess all your sins; be carried away instead by his brilliant and yes, intimidating mind for the man in the picture is none other than Dimitri Mendeleev the ‘father’ of the periodic table.

He didn’t somehow birth the periodic table into existence the way we imagine

reproduction in biological terms, but he did bring order into the disordered array of the grouping of elements. Being a renowned lecturer in Russia, he felt it his duty to write a chemistry text just like I am writing one except in his case he hadmore pressing reasons to (there were seldom any modern organic chemistry textbooks in Russian and the disordered elements gave him a headache). We can very easily picture him sitting at his desk, grouping and regrouping the elements like a weird jigsaw puzzle. We see him suddenly get up. Yes, that’s an ‘aha!’ moment as he discovers that when grouped 202

Image 228

according to their atomic numbers the elements begin to show an interesting pattern and now he could even predict certain elements that have not even been discovered yet.

The Groups and the Periods

We have gone over a brief description of what groups and periods are. Now turn to the periodic table and look at it once more. What element begins the first group? I’ll wait.

If you stated hydrogen, you’d be right. Under hydrogen we find Li, Na, K, Rb, Cs and Fr (Look at the table to see what the symbols mean). The second group begins with

Beryllium(Be) then Mg, Ca and so on. You could keep going until you reach the last group that begins with He. Have you observed that elements with the smallest atomic numbers begin the groups and those with larger atomic numbers are found down the

group? Hold on to this observation and let’s move on.

What about periods? H and He stand alone so let’s take a look at the next element Li which starts the second period, followed by Be, then B, C, N, O, F and Ne. If we check period 3 we find Na, Mg and so on. Can you see that the atomic numbers also increase across the period?

Let’s zoom in a little on what’s going on in the background. We have learnt about electronic shells and configurations. I am certainly glad we studied that because that would make understanding this a breeze. If we study the group 1 elements we notice something interesting.

We don’t need to finish writing down the configuration for the entire group, as I am quite certain you’ve noticed the pattern here as well. If you look closely, you find that the valence electrons (you recall the meaning) are exactly the same for each element in the same group. Here we see that the number of valence electrons for the elements of

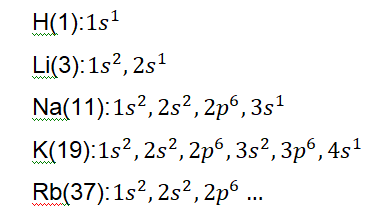

group 1 is 1. If we proceed to writing down the electronic configurations of the elements of group 2 we find a similar pattern. All the elements have 2 valence electrons each.

Why not try writing them down? I’ll wait.

203

Image 229

It is important to note that we put hydrogen in group 1 just for the convenient reason that it has a single valence electron. However, in reality H belongs to no particular group. The same can be said for helium (He). While its valance electrons are 2, the other elements of group 8 (or group 0 in some texts) have valence electrons of 8.

I am quite sure you have seen the pattern with your own eyes. We can now safely say that elements in the same group have the same number of valence electrons.

Periods

Now that we have understood what basic factor determines group arrangement let’s

take a look at periods. You must recall what shells are. They dertermine the

arrangement iof elements in groups. For instance elements in period 2 have 2 electron shells (K and L). Elements in period 4 have 4 electron shells(K, L, M, N). How many electron shells do elements in period 3 have?

In addition to shells we also find a pattern with regards their valence electrons.

Notice how the number of valence electrons increases by one with each element? Li has 1, Be has 2 and B has 3; yes, 3. Don’t be confused by the number ‘1’ hanging

above ‘2p’. The number of valence electrons is actually a combination of them meaning 3.

How Atomic Properties Become Clearer with the Periodic Table

Just like people have different properties that make them who they are, atoms are different too. Just like you have people of different shapes and sizes, atoms have different shapes and sizes too and just as people react differently to things, atoms are different when placed in certain conditions. These differences are also clearly seen when we look at the periodic table. Mendeleev did that in his groupings and we are going to take a look at them too.

Sizes (Atomic Radii)

We have already mentioned that the number of valence electrons increase as we move down the group of the periodic table. This could also translate to saying that the number of valence shells increase as well. It just makes sense. Imagine having a birthday party for twelve people. It is logical that you set out twelve seats to accommodate the twelve people. If however you realize that more people would be attending your party you set out more seats depending on the number of people that would be coming. So the

204

number of seats increases with the number of guests expected. The same goes for the group elements. As the number of electrons increases down the group, the number of valence shells increases so as to accommodate the increasing number of electrons. In the end we find that the atomic size increases as well so that the last element in the group would be larger than the first. Knowing this, it is now no surprise that the atomic size of Radium (Ra) is larger than Beryllium(Be).

If you understood what was just explained we can proceed to explain atomic and ionic sizes in the context of electron clouds (which is a more modern take on atomic structure which we have previously examined).

Unlike the neat little mental picture we painted with valence shells, electron clouds are little more difficult to picture. It is difficult to come to terms with their specific sizes but we take into account relative distances between nuclei using x-ray diffraction studies.

The same can be said for ionic sizes which are just atomic sizes that undergo changes due to electron transfer i.e. when the atom loses or gains electrons. Down the group the electron cloud enlarges due to a reduction in the force of attraction between the positive charge of the nucleus and the electrons farther from it. The increasing number of shells however does not allow for a reduction in atomic size since they are farther away from the positive charge.

For the period however, the sizes of the atoms decreases progressively as we move from one element to the other from left to right. This is because the increasing number of electrons means an increase in the positive charge. This in turn means that the positive charge pulls in the electrons to itself even more allowing for a more ‘compact’

atom size. Unlike groups that extra shells are added, the number of shells across the period remains the same.

Electronegativity

We have discussed electronegativity before now but there’s of course no crime in briefly having another look. You recall that electronegativity is the tendency of an atom of an element to accept electrons. Certain atoms such as Na have only one electron on their valence shells and hence they tend to give electrons and not accept. Na is therefore not electronegative, but electropositive because it easily gives the electron more than it accepts electrons. An atom of Fluorine however has 7 electrons on its valence shell and hence needs only 1 electron to complete the octet configuration and attain stability. F2

can therefore be said to be electronegative. In the periodic table, electronegativity tends 205

Image 230

to decrease as you go down the group due to the fact that atomic radii increases. Can you explain why this is so? I’ll wait.

Figure 9-2 I chuckled a little

If you have been following (and I believe you have), you would understand that as the atomic radii increases down the group, there is more space on the shells for electrons.

Lower number of electrons on the valence shells means that the corresponding atom would be quite far from an octet configuration, and hence more willing to lose electrons to reach that configuration, than accept electrons on its shells.

But what happens to electronegativity across the period? Well it increases across the period from left to right. This happens because the atomic sizes decrease as we

proceed in that direction. In this case you have more electrons present on an average valence shell as you move from left to right. These usually need about one or two electrons to complete the octet configuration and hence are willing to accept electrons.

Electron Affinity

Electron affinity generally means the readiness of an atom or other elementary particle to accept electrons. Don’t be confused by thinking electronegativity and electron affinity are the same thing. While electronegativity is the tendency to accept electrons, electron affinity is the energy released when an electron is added to an atom to form an ion (an anion). From this definition it is quite possible for you to guess what the periodic table trend is for this. Did you come to see that it must therefore increase across the period? Since more electrons are on the valence shells, the tendency to accept

electrons would increase from left to right as more atoms would need one or two

electrons to complete their octet configurations. It also largely decreases down the group for reasons I am certain you are aware of now.

206

Image 231

Image 232

Image 233

Image 234

THE GROUPS

Group 1(Alkali Metals)

Chemical Properties

1. Due to their single valence electrons they show similar chemical reactions.

2. This single valence electron makes them highly electropositive (able to lose

electrons) and hence very reactive.

3. Their reactivity however differs, as elements down the group are more reactive than preceding elements. This is because as we proceed down the group the

number of shells increases making the valence electrons move further from the

nuclear charge and hence readily able to be removed. In addition to this, the

screening effect of inner electrons allows for further distancing of valence electrons from the nuclear charge. This screening effect occurs when

surrounding electrons repel each other due to having the same charge

(negative). This makes the attractive force between the electrons and the nuclear charge weakens, making it easy for them to be removed from the shells; hence

reactivity is said to increase down the group.

4. Since reducing agents give out electrons readily, it is safe to say that group 1

elements are good reducing agents. For the same reasons described above,

their strength as reducing agents increases as we go down the group.

5. They readily react with water to form metal hydroxides and H.

6. They react with chlorine (Cl) to form metal chlorides.

7. They generally react with group 7 elements also known as the halogens (we’re getting there) to form metal halides. The general form for this reaction is;

Where A: group 1 element and H is the halide, making AH the metal halide

formed as a product of the reaction. Note that chlorine is a halide as well.

207

Image 235

Image 236

Physical Properties

1. They are usually referred to as soft solids as they are malleable and can be cut with ease.

2. They can conduct heat and electricity easily.

3. They don’t seem to react well to the open air unlike you and I (perhaps) because they turn dull when exposed to air.

4. They have low boiling and melting points.

5. They are grey solids and can appear silvery when cut.

6. Their densities are comparably low compared to other metals.

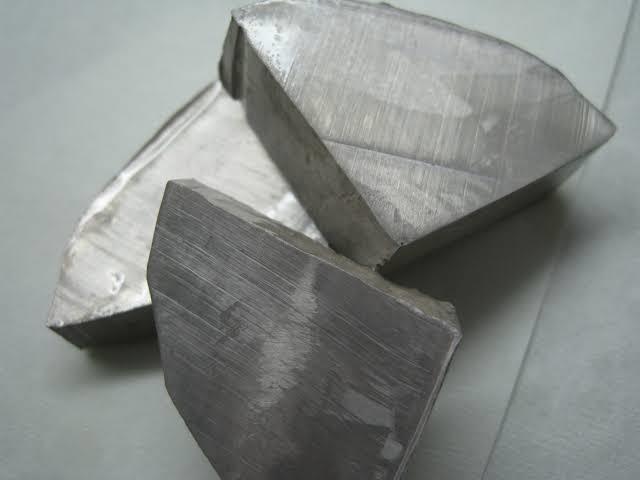

Figure 9-3 Na; a group 1 element

Group 2(Alkali-Earth Metals)

Chemical Properties

1. They react with the halogens to form metal halides, just like the group 1 metals do.

208

Image 237

Image 238

Image 239

Image 240

2. On reacting with water, they tend to produce metal hydroxides and evolve

hydrogen gas. Be however does not follow this trend as it does not react with

water.

3. They could react with Nitrogen to produce nitrides. This reaction must occur in conditions of high temperature.

4. When they react with oxygen, they form oxides.

Physical Properties

1. Even though they appear ‘soft’. They are harder than group 1 metals. However

don’t go biting down on either of them if you value your life.

2. They are electropositive and this increases down the group.

3. They are highly conductive both thermally and electrically (please don’t bite down on them).

4. They have higher melting and boiling points in comparison to the alkali metals.

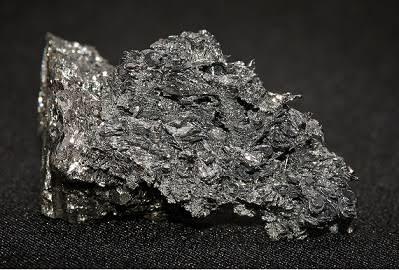

Figure 9-4Beryllium metal

The Transition Metals

The transition metals are the elements that exist in the upper blocks of groups 3 to 12.

It would be helpful to note that these elements are not the lower separated blocks under the groups, but the higher ones. This would become clearer in time so don’t fret.

Properties

1. They have high boiling points

209

Image 241

2. They can be very hard

3. They can be used as good catalysts

4. They show metallic luster

5. They can be very malleable (arts and crafts anyone?)

6. They typically have low ionization energies

7. They conduct electricity well

8. They have high melting point

Figure 9-5 Transition crafts anyone?

Group 13

Properties

1. They have three valence electrons in their outermost shells.

2. They form electrovalent/ionic compounds

3. They form amphoteric oxides and hydroxides (both acidic and basic properties) 4. They are softer and hence more malleable (does this remind you of another

group?)

5. They have low melting points

6. They are not very conductive

210

Image 242

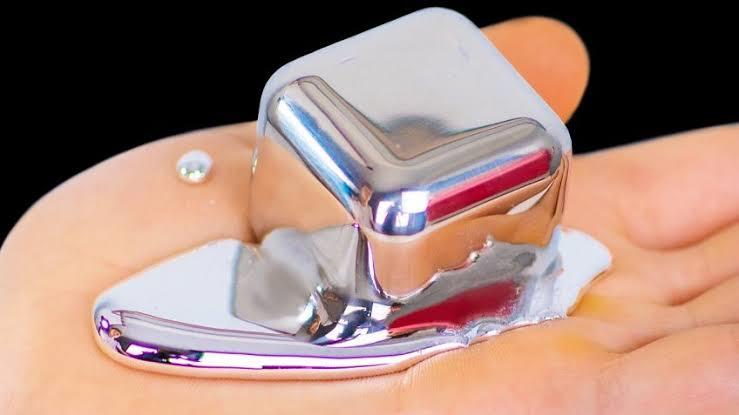

Figure 9-6Gallium melts in your hands

Group 14

Properties

1. They are tetravalent; meaning they have four valence electrons (‘tetra’ meaning four.)

2. Reactivity decreases down the group.

3. C, Si and Gm are not affected by diluted acids and water

4. Sn and Pb are amphoteric in nature.

5. Even though Pb and Sn are less reactive than the others, they are still able to react with the halogens (group 17 elements).

6. There are two oxidation states present in this group. While the +2 oxidation state increases as we move down the group, the +4 oxidation state decreases as we

proceed down the group from C to Sn.

211

Image 243

Figure 9-7Carbon is quite an interesting element

Group 15

Properties

1. The density of the elements increase as we move down the group. N for instance is a gas, in the middle of the group we find metalloids such as As and then finally we find metals such as Bi.

2. There is an increase in atomic and ionic radii as we move down the group for

reasons earlier explained. However, the increase from As to Bi is only relatively slight. This happens because of the presence of completely filled f or d orbitals in the more dense elements.

3. Since the atomic size increases as we slide down the group, electronegativity naturally decreases and we both know why.

4. The ionization energy as we move down also decreases since the atomic radii

increases. If you remember clearly what ionization energy is you know that this has something to do with the nucleus having a weaker hold on the electrons.

5. There is an increase in boiling point down the group.

212

Image 244

6. Allotropes of the elements exist except for N. (Allotropy is the ability of an element to exist in different physical forms but in the same chemical state. Water for instance has the gaseous (steam), liquid and solid (ice) allotropic forms while still having the same chemical state (two hydrogen atoms, one oxygen atom per

molecule))

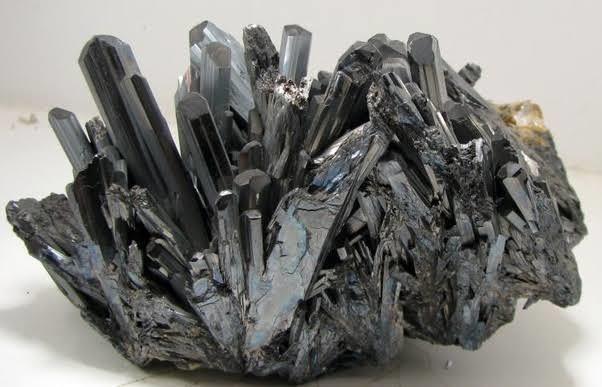

Figure 9-8Antimony is an interesting name

Group 16

Properties

1. They are also known as chalcogens.

2. They are electropositive

3. Ionization energy and electron affinity decrease as we move down the group.

4. The atomic radii increase down the group

5. Metallic character increases down the group

6. Melting and boiling points increase down the group with increasing atomic

numbers

213

Image 245

Figure 9-9Mined Sulphur

Group 17

Properties

1. These are known as the halogens or salt formers

2. They have seven valence electrons in their valence shells

3. They are coloured; the colours become darker as we go down the group, with F2

being pale yellow, white or even colourless and I2 being blue/black.

4. Their molecules are diatomic

5. They have low melting and boiling points due to weak van der waals forces

holding their atoms together.

6. They are weak conductors of heat and electricity

7. They have low densities and hence are all non-metals.

8. Their reactivity decreases as we go down the group so that Cl2 is more reactive than Br2 which is more reactive than I2and I2 more than At2 (you get the picture).

9. They are highly electronegative

10. There is a gradation in their states as F2 and Cl2 are gaseous, Br2 is a liquid and I2 and At2are solids at room temperature.

214

Image 246

Figure 9-10Astatine

Group 18

Properties

1. These are the rare or noble gases (picture a serene unreactive yoda floating in midair as a visual aid)

2. They have no colour, odor or taste (yum)

3. Their atomic radii increase as we go down the group

4. They are gasses at room temperature

5. They generally have low melting and boiling points and their melting and boiling points increase down the group.

6. They have low densities and are insoluble in water

7. They do not conduct electricity and conduct heat only a little.

8. Noble gasses have a duplet configuration and this allows them to be very stable 9. They are inert in that they do not engage in reactions by moving their electrons about (in accepting, giving away or sharing). This makes them unreactive.

10. They are generally non-flammable.

215

Image 247

Figure 9-11 Helium is used to fill balloons of all shapes and sizes

Lanthanides and Actinides

Lanthanides

Properties

1. These elements are the first of the two separated blocks of elements below the transition elements that are situated between groups 4 and 18 on the periodic

table.

2. The first element from left to right is lanthanum and since they have similar properties they are all referred to as lanthanides.

3. They are generally silver coloured.

216

Image 248

4. They are very reactive elements.

5. They are also known as rare earths.

6. Their atomic numbers varies from 57 to about 71.

7. Their densities increase down the group. They can be relatively soft though.

8. They have high melting and boiling points

9. They can burn in air fairly easily

10. They are good reducing agents.

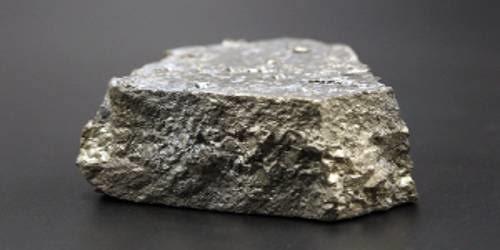

Figure 9-12 Cerium

Actinides

Properties

1. They are called Acting elements and range in atomic number from 89 to 103.

2. They are located in the last row below the lanthanides; the first element from left to right is actinium and their similar properties have given them the name actinides.

3. Their isotopes are unstable and they are all radioactive so it’s safe to treat them with caution.

4. They spontaneously ignite in air hence they are said to be pyrophoric.

5. Like the lanthanides, they are also quite soft. This makes them easily malleable.

6. They are very electropositive.

217

Image 249

Figure 9-13 Plutonium

It is good to note that the lanthanides and actinides are often referred to as the inner transition elements. They seem to be the odd ones out and are separated from the rest of the family because they just can’t seem to quite fit in. If they did fit in they would make the table unnecessarily difficult and cumbersome (Imagine this table but in 3d) Since we would like to sleep well tonight we would skip the reason for this separation, even though I encourage you to read up on it on your own if your merciful teachers would allow a scheme that could give you a little leg room for that.

218

Image 250

Well, that was definitely an interesting find. And it’s all thanks to Mendeleev else it would have been majorly difficult to make the many discoveries we continue to make now on account of the periodic table. Remember to give old Mendeleev a little thanks as you sip your drink and prepare to read some summaries and enjoy some practice

questions- the best part 

219

SUMMARY

 The periodic table is an organized arrangement of chemical elements in rows

and columns on account of increasing atomic numbers.

 The elements on the periodic table are divided into groups and periods. Groups consist of the vertical arrangement of elements from top to bottom, while periods include the horizontal arrangement from left to right.

 Dimitri Mendeleev, a brilliant Russian lecturer discovered the periodic table of elements.

 Factors such as electronegativity, electron affinity and atomic radii (size)determine the arrangement of elements on the periodic table.

 There are 18 groups in the periodic table (1 to 18, including the transition

elements) though some texts show groups 1 – 0 (0 being group 18, representing

the noble gasses, not including the transition elements) where we have groups

1,2,3,4,5,6 and 7. However this is an older method and is not largely in use

anymore.

 The lanthanides and actinides are heavy elements located at the lower portion of the table.

 Group elements have similar characteristics.

220

MNEMONICS

What seems mnemonic worthy today? Look through the text and see if you can find

any. Remember to keep it simple so it’s easy to remember.

221

REVISION QUESTIONS

1. What is the periodic table?

2. Who is considered to be the father of the periodic table

3. Explain the following with regards to periodic table trends:

a) Electronegativity

b) Electron Affinity

c) Atomic radii

4. List 5 properties each of the following groups:

a) Group 1

b) Group 2

c) Group 13

d) Group 14

e) Group 15

f) Group 16

g) Group 17

h) Group 18

i) Transition Elements

j) Lanthanides

k) Actinides

5. For group one elements like H, how many valence electrons are on the valence

shell?

222

Image 251

223

REFERENCES

1. Figure 1-1. Lightening. Adapted from National Geographic Kids, by Mihai Simonia, Retrieved from

https://kids.nationalgeographic.com/science/article/lightning-.

2. Figure 1-2. John Dalton, F.R.S. Adapted from Science History Institute, by William Henry Worthington after an 1814 painting by William Allen, Retrieved from https://www.sciencehistory.org/files/dalton1-profilejpg

3. Figure 1-3. John Dalton S Periodic Tables. Adapted from imagedog, Retrieved from https://imagedog.vercel.app/8/posts/the-best-15-science-symbols-list/

4. Figure 1-4. J.J Thomson: Cathode ray tube. Adapted from Chemistry LibreTexts, credit a) modification of work by Nobel Foundation; credit b) modification of work by Eugen Nesper; credit c: modification of work by “Kurzon”/Wikimedia

Commons. Retrieved from

https://chem.libretexts.org/Courses/University_of_Arkansas_Little_Rock/Chem_1

402%3A_General_Chemistry_1_(Belford)/Text/2%3A_Atoms%2C_Molecules%2

C_and_Ions/2.01%3A_Atoms%3A_Their_Composition_and_Structure

5. Figure 1-5. Thomson’s Plum Pudding or Chocolate Chip Cookie Model of the Atom. Adapted from Flatworld, Retrieved from

https://scholar.flatworldknowledge.com/books/4309/averill_1.0-ch01_s05/preview

6. Figure 1-6. Ernest Rutherford. Adapted from 10 Facts, Retrieved from

https://10factstop.blogspot.com/2017/08/10-facts-about-nuclear-energy.html

7. Figure 1-7. Rutherford Model of the Atom. Adapted from Another Level Higher, Retrieved from https://anotherlevelhigher.wordpress.com/2016/08/25/781/

8. Figure 1-8. Bohr Model. Adapted from QS Study, Retrieved from

https://qsstudy.com/chemistry/bohr-model

9. Figure 1-9. Erwin Schrodinger. Adapted from The Nobel Prize, Retrieved from

https://www.nobelprize.org/prizes/physics/1933/schrodinger/biographical/

10. Figure 1-10. Electron Cloud. Adapted from Atomic Theory Timeline, Retrieved from https://paininmyassproject.weebly.com/erwin-schrodinger.html

11. Figure 1-11. Elementary particles included in the standard model. Adapted from Wikepedia; The Free Encyclopedia, Retrieved from

https://en.wikipedia.org/wiki/Elementary_particle

12. Figure 1-12. Particle Hierarchy. Adapted from Pinterest, Retrieved from

https://www.google.com/imgres?imgurl=https://i.pinimg.com/originals/eb/55/3e/eb

224

553e3564dd171ca9c0899f328ea6d9.gif&imgrefurl=https://www.pinterest.com/po

dgaets/phisics/&h=640&w=250&tbnid=akjAC26NTPGJPM&tbnh=360&tbnw=140

&usg=AI4_-kQcaCyh3BfQCbv04RfwPU0kCFiEQw&vet=1&docid=-

U0IMz_kCrHFKM&itg=1&hl=en_GB

13. Figure 2-2. A Modern Periodic Table. Adapted from Chemistry libreTexts, Retrieved from

https://chem.libretexts.org/Courses/Heartland_Community_College/CHEM_120%

3A_Fundamentals_of_Chemistry/02%3A_Atoms_and_Elements/2.02%3A_Perio

dic_Table

14. Figure 2-3. Broken Seesaw. Adapted from Esoteric Thoughts, Retrieved from

http://catate.blogspot.com/2011/07/unbalanced-relationships-sometimes-

feel.html

15. Figure 3-1(a). Sailing Lakes. Adapted from World Sailing Charters, Retrieved from https://www.worldsailingcharters.com/best-sailing-lakes-in-california/

16. Figure 3-1(b). Beautiful Space Wallpapers. Adapted from Wallpaper Cave, Retrieved from https://wallpapercave.com/beautiful-space-wallpapers

17. Figure 3-1 (c). Angry businesswoman is slapping across the businessman’s face.

Adapted from Shutterstock, by Sergey Peterman, Retrieved from

https://www.shutterstock.com/image-photo/angry-businesswoman-slapping-

across-businessmans-face-73107073

18. Figure 3-2. Gilbert Newton Lewis. Adapted from Berkeley College of Chemistry, Retrieved from https://chemistry.berkeley.edu/news/gilbert-newton-lewis

19. Figure 3-3. Valence Electrons. Adapted from Science ABC, Retrieved from

https://www.scienceabc.com/pure-sciences/how-to-find-the-number-of-valence-

electrons-in-an-element.html

20. Figure 3-4.KLMN Shells. Adapted from Christian Schnell, Retrieved from

https://christian-schnell.info/photo/what-is-k-l-m-n-in-chemistry.htm

21. Figure 3-9. Sodium and Chlorine dot structures. Adapted from Wraptia, Retrieved from https://wraptia.blogspot.com/2021/05/valence-shell-vsepr-definition-

valence.html

22. Figure 3-11. NaCl dissolving in water. Adapted from CHM 101 General Chemistry, Retrieved from

http://www.ltcconline.net/stevenson/2008CHM101Fall/CHM101LectureNotes200

81022.htm

225

23. Figure 3-12. Hydrogen bonds between water molecules. Adapted from Oregon State University, Retrieved from

https://open.oregonstate.education/aandp/chapter/2-2-chemical-bonds/

24. Figure 4-1. Crystalline and Amorphous solids. Adapted from Chemistry LibreTexts, Retrieved from

https://chem.libretexts.org/Bookshelves/General_Chemistry/Map%3A_A_Molecul

ar_Approach_(Tro)/12%3A_Solids_and_Modern_Materials/12.04%3A_The_Fun

damental_Types_of_Crystalline_Solids

25. Figure 4-2. Particles in a liquid. Adapted from BrainStudy, Retrieved from

https://brainstudy.info/images/particles-in-a-liquid

26. Figure 4-3. Gas particles. Adapted from TechnologyUK, Retrieved from

https://www.technologyuk.net/science/matter/states-of-matter.shtml

27. Figure 4-4. Change of State. Adapted from Chemistry Glossary, Retrieved from

https://glossary.periodni.com/dictionary.php?en=change+of+state

28. Figure 4-5. Plasma state. Adapted from GuyHowto, Retrieved from

https://www.guyhowto.com/plasma-state/

29. Figure 4-6 (a). SatyendraNath Bose. Adapted from New World Encyclopedia, Retrieved from

https://www.newworldencyclopedia.org/entry/Satyendra_Nath_Bose

30. Figure 4-6 (b). Albert Einstein. Adapted from biography.com, Retrieved from

https://www.biography.com/scientist/albert-einstein

31. Figure 4-7. Bose Einstein condensate simulation. Adapted from Science News, Retrieved from https://www.sciencenews.org/article/50-years-ago-millionth-

degree-above-absolute-zero-seemed-cold

32. Figure 4-8. Five States of matter. Adapted from Rotary club of Balclutha, Retrieved from

https://www.google.com/imgres?imgurl=https%3A%2F%2Fclubrunner.blob.core.

windows.net%2F00000013188%2FImages%2Ffive-states-of-

matter.jpg&imgrefurl=https%3A%2F%2Fbalclutharotary.club%2Fstories%2Fquan

tum-world-with-dr-eyal-

schwartz&tbnid=zx_rZQVT2dj58M&vet=12ahUKEwiT6IzEsbDxAhUIXxoKHX8RA

eoQMygAegQIARAf..i&docid=a-

n1hA3uqsc4RM&w=728&h=546&q=all%205%20states%20of%20matter&hl=en_

GB&ved=2ahUKEwiT6IzEsbDxAhUIXxoKHX8RAeoQMygAegQIARAf

226

33. Figure 4-9. Boyle’s law. Adapted from BC Campus, Retrieved from

https://opentextbc.ca/anatomyandphysiologyopenstax/chapter/the-process-of-

breathing/

34. Figure 4-10. Charles’ law. Adapted from ChemsitryLibreTexts, Retrieved from

https://chem.libretexts.org/Bookshelves/General_Chemistry/Book%3A_General_

Chemistry_Supplement_(Eames)/Gases/Gas_Laws

35. Figure 4-11. Gay Lussac’s law. Adapted from Let’s Talk Science, Retrieved from

https://letstalkscience.ca/educational-resources/backgrounders/charles-law-and-

gay-lussacs-law

36. Figure 4-12. Pressure. Adapted from Shutterstock, by Tatyana Dzemileva,Retrieved from https://www.shutterstock.com/image-photo/tired-

mother-kids-girl-jumping-on-515256517

37. Figure 4-13. William Henry. Adapted from World of Chemicals, Retrieved from

https://www.worldofchemicals.com/82/chemistry-articles/william-henry-developer-

of-henrys-law.html

38. Figure 5-1. Group 1- The Alkali metals. Adapted from Chemistry LibreTexts, Retrieved from

https://chem.libretexts.org/Bookshelves/Inorganic_Chemistry/Book%3A_Chemist

ry_of_the_Main_Group_Elements_(Barron)

39. Figure 5-2. Catalysts. Adapted from Rader’s Chem4Kids, Retrieved from

http://www.chem4kids.com/files/react_catalyst.html

40. Figure 5-5. Burning forest. Adapted from Clark Fork Coalition, Retrieved from

https://clarkfork.org/summer-weather/

41. Figure 5-6. Formation of precipitate. Adapted from Quizizz, Retrieved from

https://quizizz.com/admin/quiz/60805239bf91d6001b06e7ee/characteristics-of-

chemical-reactions-flashcard

42. Figure 5-7. Redox reactions. Adapted from The Fact Factor, Retrieved from

https://thefactfactor.com/facts/pure_science/chemistry/physical-chemistry/redox-

reactions/11959/

43. Figure 5-8. Redox. Adapted from Shutterstock, by OSweetNature, Retrieved from

https://www.shutterstock.com/image-vector/oxidation-reduction-loss-gain-

electrons-compounds-1263276619

44. Figure 5-9. Oxidation states. Adapted from Ontola, Retrieved from

https://www.ontola.com/cs/ondi/wlwmgs/proc-ma-ethanol-oba-uhliky-s-oxidacnim

227

45. Figure 5-10. Corrosion, steel, iron, old, industry, rust. Adapted from Pixnio, by Ulleo, Retrieved from https://pixnio.com/objects/corrosion-steel-iron-old-industry-

mechanism-rust

46. Figure 5-11. Acids and bases. Adapted from Pinterest, Retrieved from

https://www.pinterest.com/pin/344736546462740328/

47. Figure 5-12. Ronda Rousey and Miesha Tate. Adapted from gettyimages, by Josh Hedges, Retrieved from https://www.gettyimages.com/detail/news-photo/ronda-

rousey-throws-miesha-tate-in-their-ufc-womens-news-

photo/459660287?adppopup=true

48. Figure 5-13. Collision Theory. Adapted from SlideToDoc, Retrieved from

https://slidetodoc.com/collision-theory-collision-theory-what-is-necessary-for/

49. Figure 6-1. 400 meters relay race. Adapted from Wikimedia Commons, by Arch-Angel Raphael the Artist, Retrieved from

https://commons.wikimedia.org/wiki/File:400_meters_relay_race.jpg

50. Figure 6-2. Exothermic and endothermic. Adapted from exo 2020, Retrieved from

https://exo2020reborn.blogspot.com/2020/02/exo-and-endothermic.html

51. Figure 6-3. Born-Haber. Adapted from English tenses, Retrieved from

https://www.google.com/imgres?imgurl=https%3A%2F%2F1.bp.blogspot.com%2

F-

nnR3BveSImE%2FWEF9D7st0_I%2FAAAAAAAACd8%2FLVOFbS4UjKwBC6C

Mac7ecW8ww9FJdsCPQCLcB%2Fs1600%2Fborn-haber-cycle-of-

nacl.png&imgrefurl=https%3A%2F%2Fenglishtenses.pro%2Fphotos%2Fhow-to-

find-lattice-energy-born-haber-cycle&tbnid=1qDXzb-

s_a5CbM&vet=12ahUKEwjggdjp_bDxAhUF_BoKHQ7pDTgQMygAegQIARAf..i&

docid=hVb0U-iA--

tjbM&w=467&h=391&q=born%20haber%20cycle%20sodium%20iodide&hl=en-

NG&ved=2ahUKEwjggdjp_bDxAhUF_BoKHQ7pDTgQMygAegQIARAf

52. Figure 6-4. Space explosion. Adapted from Motion Array, by RajPakhare, Retrieved from https://motionarray.com/stock-motion-graphics/space-explosion-

35930/

53. Figure 7-1 (a). Balanced seesaw. Adapted from burnabyschools, Retrieved from

https://learning.burnabyschools.ca/wp-content/uploads/2021/01/Science-5-Feb-

1-5_Contact-and-Non-Contact-Forces.pdf

228

54. Figure 7-1 (b). Passing (juggling). Adapted from Wikipedia, The Free Encyclopedia, Retrieved from https://en.wikipedia.org/wiki/Passing_(juggling)

55. Figure 8-1. Faraday’s Electrolysis Experiment. Adapted from FineartAmerica, by Sheila Terry, 1833, Retrieved from https://fineartamerica.com/featured/faradays-

electrolysis-experiment-1833-sheila-terry.html

56. Figure 8-2. Electrolysis. Adapted from Quizizz, Retrieved from

https://quizizz.com/admin/quiz/60abd67d582c75001bdc7dab/electrolysis-of-

copper-sulphate

57. Figure 8-3. Electrolysis of Copper sulphate. Adapted from Electronics Easy Top, Retrieved from https://www.electronicafacil.top/bateria-plomo-acido/principio-de-

la-electrolisis-del-electrolito-de-sulfato-de-cobre/

58. Figure 8-4. Galvanic Cell. Adapted from Wikipedia, The Free Encyclopedia, Retrieved from https://en.wikipedia.org/wiki/Galvanic_cell

59. Figure 8-5. Svante Arrhenius. Adapted from Sutori, Retrieved from

https://www.sutori.com/story/global-warming-timeline--

shaD5HmXb75JGifZvapA7Q35

60. Figure 8-6. The Electrochemical Series. Adapted from Gate Academy, Retrieved from https://gateacademy.com.ng/study-by-topics/senior-school-

study/chemistry/electrolysis/

61. Figure 9-1. Dimitri Mendeleev. Adapted from Wikipedia, The Free Encyclopedia, Retrieved from

https://www.google.com/imgres?imgurl=https://upload.wikimedia.org/wikipedia/co

mmons/thumb/8/8f/Dmitri_Mendeleev_1890s.jpg/150px-

Dmitri_Mendeleev_1890s.jpg&imgrefurl=https://en.wikipedia.org/wiki/Periodic_ta

ble&h=191&w=150&tbnid=Kb0mmSJit3-bOM&tbnh=191&tbnw=150&usg=AI4_-

kTeJ3pRTdfIt97A1G7Kw7Zyb0UASg&vet=1&docid=09cCjaH0MxNCvM&itg=1&h

l=en

62. Figure 9-2. Mendeleev. Adapted from Sweatpants and Coffee, Retrieved from

https://sweatpantsandcoffee.com/sweatpants-sanity-brain-soothers-periodic-

tables-awesomeness-edition/10-mendeleev/

63. Figure 9-3. Beryllium. Adapted from Chemical Book, Retrieved from

https://m.chemicalbook.com/ChemicalProductProperty_DE_CB4226453.htm

64. Figure 9-4. Manganese. Adapted from ntra.nasa.gov, Retrieved from

file:///C:/Users/HP/Downloads/20160001416.pdf

229

65. Figure 9-5. Gallium. Adapted from YouTube, Retrieved from

https://www.google.com/url?sa=i&url=https%3A%2F%2Fwww.youtube.com%2F

watch%3Fv%3DMke6ZTgVlzw&psig=AOvVaw2x8JoL1dHAZ1xMfOj4MIIw&ust=1

624704699555000&source=images&cd=vfe&ved=0CAsQjhxqFwoTCPCJ3ITPsv

ECFQAAAAAdAAAAABAE

66. Figure 9-6. Coal. Adapted from gettyimages, Retrieved from

https://www.gettyimages.com/photos/coal-to-diamond

67. Figure 9-7. Antimony. Adapted from Geology Science, Retrieved from

https://geologyscience.com/minerals/antimony/

68. Figure 9-8. Mining. Adapted from The Atlantic, Retrieved from

https://www.theatlantic.com/international/archive/2015/02/the-men-who-mine-

volcanoes-indonesia/385913/

69. Figure 9-9. Uraninite.Adapted from Energy Education, Retrieved from

https://energyeducation.ca/encyclopedia/Uranium_enrichment

70. Figure 9-10. Person holding balloons. Adapted from Pinterest, Retrieved from

https://id.pinterest.com/pin/722968546417000977/

71. Figure 9-11. Cerium. Adapted from Chemistry Learner, Retrieved from

https://www.chemistrylearner.com/cerium.html

72. Figure 9-12. Plutonium. Adapted from Restricted Data, Retrieved from

http://blog.nuclearsecrecy.com/2015/04/10/critical-mass/

230

You may also like...
