Chapter 12

Linear Regression and Correlation

12.1 Linear Regression and Correlation1

12.1.1 Student Learning Outcomes

By the end of this chapter, the student should be able to:

• Discuss basic ideas of linear regression and correlation.

• Create and interpret a line of best fit.

• Calculate and interpret the correlation coefficient.

• Calculate and interpret outliers.

12.1.2 Introduction

Professionals often want to know how two or more numeric variables are related. For example, is there a

relationship between the grade on the second math exam a student takes and the grade on the final exam?

If there is a relationship, what is it and how strong is the relationship?

In another example, your income may be determined by your education, your profession, your years of

experience, and your ability. The amount you pay a repair person for labor is often determined by an initial

amount plus an hourly fee. These are all examples in which regression can be used.

The type of data described in the examples is bivariate data - "bi" for two variables. In reality, statisticians

use multivariate data, meaning many variables.

In this chapter, you will be studying the simplest form of regression, "linear regression" with one indepen-

dent variable (x). This involves data that fits a line in two dimensions. You will also study correlation which

measures how strong the relationship is.

12.2 Linear Equations2

Linear regression for two variables is based on a linear equation with one independent variable. It has the

form:

y = a + bx

(12.1)

1This content is available online at <http://cnx.org/content/m17089/1.6/>.

2This content is available online at <http://cnx.org/content/m17086/1.4/>.

Available for free at Connexions <http://cnx.org/content/col10522/1.40>

523


524

CHAPTER 12. LINEAR REGRESSION AND CORRELATION

where a and b are constant numbers.

x is the independent variable, and y is the dependent variable. Typically, you choose a value to substitute

for the independent variable and then solve for the dependent variable.

Example 12.1

The following examples are linear equations.

y = 3 + 2x

(12.2)

y = −0.01 + 1.2x

(12.3)

The graph of a linear equation of the form y = a + bx is a straight line. Any line that is not vertical can be

described by this equation.

Example 12.2

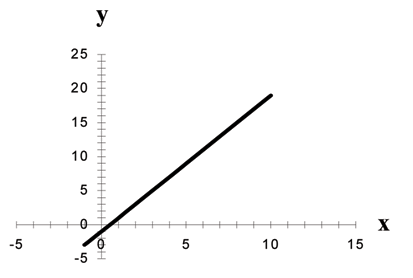

Figure 12.1: Graph of the equation y = −1 + 2x.

Linear equations of this form occur in applications of life sciences, social sciences, psychology, business,

economics, physical sciences, mathematics, and other areas.

Example 12.3

Aaron’s Word Processing Service (AWPS) does word processing. Its rate is $32 per hour plus a

$31.50 one-time charge. The total cost to a customer depends on the number of hours it takes to

do the word processing job.

Problem

Find the equation that expresses the total cost in terms of the number of hours required to finish

the word processing job.

Solution

Let x = the number of hours it takes to get the job done.

Let y = the total cost to the customer.

The $31.50 is a fixed cost. If it takes x hours to complete the job, then (32) (x) is the cost of the

word processing only. The total cost is:

Available for free at Connexions <http://cnx.org/content/col10522/1.40>




525

y = 31.50 + 32x

12.3 Slope and Y-Intercept of a Linear Equation3

For the linear equation y = a + bx, b = slope and a = y-intercept.

From algebra recall that the slope is a number that describes the steepness of a line and the y-intercept is

the y coordinate of the point (0, a) where the line crosses the y-axis.

(a)

(b)

(c)

Figure 12.2: Three possible graphs of y = a + bx. (a) If b > 0, the line slopes upward to the right. (b) If

b = 0, the line is horizontal. (c) If b < 0, the line slopes downward to the right.

Example 12.4

Svetlana tutors to make extra money for college. For each tutoring session, she charges a one

time fee of $25 plus $15 per hour of tutoring. A linear equation that expresses the total amount of

money Svetlana earns for each session she tutors is y = 25 + 15x.

Problem

What are the independent and dependent variables? What is the y-intercept and what is the

slope? Interpret them using complete sentences.

Solution

The independent variable (x) is the number of hours Svetlana tutors each session. The dependent

variable (y) is the amount, in dollars, Svetlana earns for each session.

The y-intercept is 25 (a = 25). At the start of the tutoring session, Svetlana charges a one-time fee

of $25 (this is when x = 0). The slope is 15 (b = 15). For each session, Svetlana earns $15 for each

hour she tutors.

3This content is available online at <http://cnx.org/content/m17083/1.5/>.

Available for free at Connexions <http://cnx.org/content/col10522/1.40>


526

CHAPTER 12. LINEAR REGRESSION AND CORRELATION

12.4 Scatter Plots4

Before we take up the discussion of linear regression and correlation, we need to examine a way to display

the relation between two variables x and y. The most common and easiest way is a scatter plot. The

following example illustrates a scatter plot.

Example 12.5

From an article in the Wall Street Journal : In Europe and Asia, m-commerce is popular. M-

commerce users have special mobile phones that work like electronic wallets as well as provide

phone and Internet services. Users can do everything from paying for parking to buying a TV set

or soda from a machine to banking to checking sports scores on the Internet. For the years 2000

through 2004, was there a relationship between the year and the number of m-commerce users?

Construct a scatter plot. Let x = the year and let y = the number of m-commerce users, in millions.

x (year)

y (# of users)

(b)

2000

0.5

2002

20.0

2003

33.0

2004

47.0

(a)

Figure 12.3: (a) Table showing the number of m-commerce users (in millions) by year. (b) Scatter plot

showing the number of m-commerce users (in millions) by year.

A scatter plot shows the direction and strength of a relationship between the variables. A clear direction

happens when there is either:

• High values of one variable occurring with high values of the other variable or low values of one

variable occurring with low values of the other variable.

• High values of one variable occurring with low values of the other variable.

You can determine the strength of the relationship by looking at the scatter plot and seeing how close the

points are to a line, a power function, an exponential function, or to some other type of function.

When you look at a scatterplot, you want to notice the overall pattern and any deviations from the pattern.

The following scatterplot examples illustrate these concepts.

4This content is available online at <http://cnx.org/content/m17082/1.8/>.

Available for free at Connexions <http://cnx.org/content/col10522/1.40>







527

(a) Positive Linear Pattern (Strong)

(b) Linear Pattern w/ One Deviation

Figure 12.4

(a) Negative Linear Pattern (Strong)

(b) Negative Linear Pattern (Weak)

Figure 12.5

(a) Exponential Growth Pattern

(b) No Pattern

Figure 12.6

In this chapter, we are interested in scatter plots that show a linear pattern. Linear patterns are quite com-

mon. The linear relationship is strong if the points are close to a straight line. If we think that the points

show a linear relationship, we would like to draw a line on the scatter plot. This line can be calculated

through a process called linear regression. However, we only calculate a regression line if one of the vari-

ables helps to explain or predict the other variable. If x is the independent variable and y the dependent

variable, then we can use a regression line to predict y for a given value of x.

Available for free at Connexions <http://cnx.org/content/col10522/1.40>

528

CHAPTER 12. LINEAR REGRESSION AND CORRELATION

12.5 The Regression Equation5

Data rarely fit a straight line exactly. Usually, you must be satisfied with rough predictions. Typically, you

have a set of data whose scatter plot appears to "fit" a straight line. This is called a Line of Best Fit or Least

Squares Line.

12.5.1 Optional Collaborative Classroom Activity

If you know a person’s pinky (smallest) finger length, do you think you could predict that person’s height?

Collect data from your class (pinky finger length, in inches). The independent variable, x, is pinky finger

length and the dependent variable, y, is height.

For each set of data, plot the points on graph paper. Make your graph big enough and use a ruler. Then

"by eye" draw a line that appears to "fit" the data. For your line, pick two convenient points and use them

to find the slope of the line. Find the y-intercept of the line by extending your lines so they cross the y-axis.

Using the slopes and the y-intercepts, write your equation of "best fit". Do you think everyone will have

the same equation? Why or why not?

Using your equation, what is the predicted height for a pinky length of 2.5 inches?

Example 12.6

A random sample of 11 statistics students produced the following data where x is the third exam

score, out of 80, and y is the final exam score, out of 200. Can you predict the final exam score of a

random student if you know the third exam score?

5This content is available online at <http://cnx.org/content/m17090/1.15/>.

Available for free at Connexions <http://cnx.org/content/col10522/1.40>


529

x (third exam score)

y (final exam score)

65

175

67

133

71

185

71

163

66

126

75

198

67

153

70

163

71

159

69

151

69

159

(a)

(b)

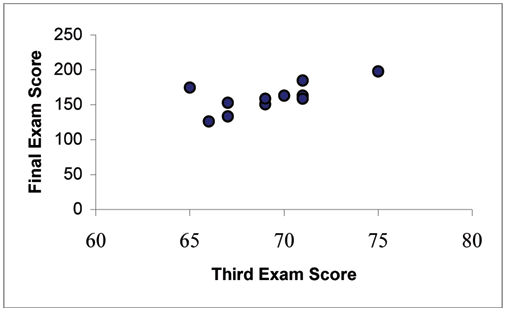

Figure 12.7: (a) Table showing the scores on the final exam based on scores from the third exam. (b) Scatter

plot showing the scores on the final exam based on scores from the third exam.

The third exam score, x, is the independent variable and the final exam score, y, is the dependent variable.

We will plot a regression line that best "fits" the data. If each of you were to fit a line "by eye", you would

draw different lines. We can use what is called a least-squares regression line to obtain the best fit line.

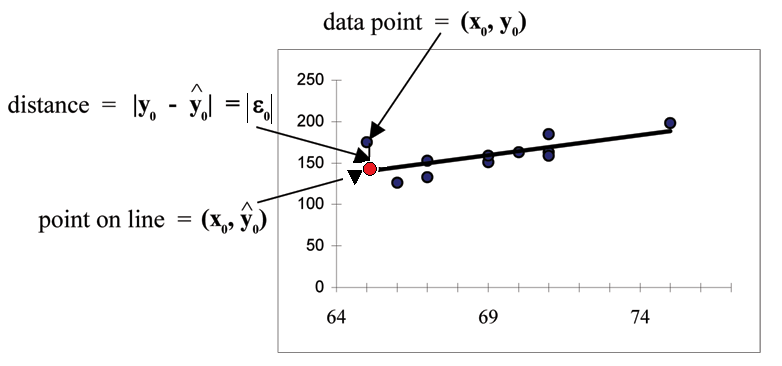

Consider the following diagram. Each point of data is of the the form (x, y)and each point of the line of

^

best fit using least-squares linear regression has the form

x, y .

^

The y is read "y hat" and is the estimated value of y. It is the value of y obtained using the regression line.

It is not generally equal to y from data.

Available for free at Connexions <http://cnx.org/content/col10522/1.40>


530

CHAPTER 12. LINEAR REGRESSION AND CORRELATION

Figure 12.8

^

The term y

y

0 −

0 =

0 is called the "error" or residual. It is not an error in the sense of a mistake. The

absolute value of a residual measures the vertical distance between the actual value of y and the estimated

value of y. In other words, it measures the vertical distance between the actual data point and the predicted

point on the line.

If the observed data point lies above the line, the residual is positive, and the line underestimates the

actual data value for y. If the observed data point lies below the line, the residual is negative, and the line

overestimates that actual data value for y.

^

In the diagram above, y

y

0 −

0 =

0 is the residual for the point shown. Here the point lies above the line

and the residual is positive.

= the Greek letter epsilon

^

For each data point, you can calculate the residuals or errors, y

y

i −

i =

i for i = 1, 2, 3, ..., 11.

Each | | is a vertical distance.

For the example about the third exam scores and the final exam scores for the 11 statistics students, there

are 11 data points. Therefore, there are 11 values. If you square each and add, you get

11

(

2

1)2 + ( 2)2 + ... + ( 11)2 = Σ

i = 1

This is called the Sum of Squared Errors (SSE).

Using calculus, you can determine the values of a and b that make the SSE a minimum. When you make

the SSE a minimum, you have determined the points that are on the line of best fit. It turns out that the line

of best fit has the equation:

^

y= a + bx

(12.4)

Available for free at Connexions <http://cnx.org/content/col10522/1.40>


531

Σ

where a = y − b · x and b = (x−x)·(y−y) .

Σ(x−x)2

x and y are the sample means of the x values and the y values, respectively. The best fit line always passes

through the point (x, y).

The slope b can be written as b = r · sy

where s

s

y = the standard deviation of the y values and sx = the

x

standard deviation of the x values. r is the correlation coefficient which is discussed in the next section.

Least Squares Criteria for Best Fit

The process of fitting the best fit line is called linear regression. The idea behind finding the best fit line is

based on the assumption that the data are scattered about a straight line. The criteria for the best fit line is

that the sum of the squared errors (SSE) is minimized, that is made as small as possible. Any other line you

might choose would have a higher SSE than the best fit line. This best fit line is called the least squares

regression line .

NOTE: Computer spreadsheets, statistical software, and many calculators can quickly calculate the

best fit line and create the graphs. The calculations tend to be tedious if done by hand. Instructions

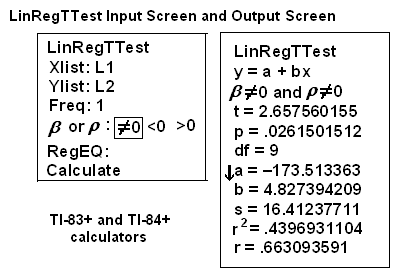

to use the TI-83, TI-83+, and TI-84+ calculators to find the best fit line and create a scatterplot are

shown at the end of this section.

THIRD EXAM vs FINAL EXAM EXAMPLE:

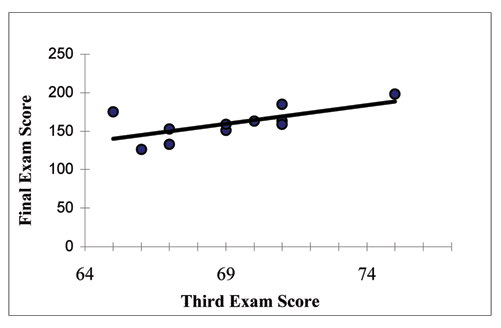

The graph of the line of best fit for the third exam/final exam example is shown below:

Figure 12.9

The least squares regression line (best fit line) for the third exam/final exam example has the equation:

^

y= −173.51 + 4.83x

(12.5)

Available for free at Connexions <http://cnx.org/content/col10522/1.40>

532

CHAPTER 12. LINEAR REGRESSION AND CORRELATION

NOTE:

Remember, it is always important to plot a scatter diagram first. If the scatter plot indicates that

there is a linear relationship between the variables, then it is reasonable to use a best fit line

to make predictions for y given x within the domain of x-values in the sample data, but not

necessarily for x-values outside that domain.

You could use the line to predict the final exam score for a student who earned a grade of 73 on

the third exam.

You should NOT use the line to predict the final exam score for a student who earned a grade of

50 on the third exam, because 50 is not within the domain of the x-values in the sample data,

which are between 65 and 75.

UNDERSTANDING SLOPE

The slope of the line, b, describes how changes in the variables are related. It is important to interpret

the slope of the line in the context of the situation represented by the data. You should be able to write a

sentence interpreting the slope in plain English.

INTERPRETATION OF THE SLOPE: The slope of the best fit line tells us how the dependent variable (y)

changes for every one unit increase in the independent (x) variable, on average.

THIRD EXAM vs FINAL EXAM EXAMPLE

Slope: The slope of the line is b = 4.83.

Interpretation: For a one point increase in the score on the third exam, the final exam score increases by

4.83 points, on average.

12.5.2 Using the TI-83+ and TI-84+ Calculators

Using the Linear Regression T Test: LinRegTTest

Step 1. In the STAT list editor, enter the X data in list L1 and the Y data in list L2, paired so that the corre-

sponding (x,y) values are next to each other in the lists. (If a particular pair of values is repeated, enter

it as many times as it appears in the data.)

Step 2. On the STAT TESTS menu, scroll down with the cursor to select the LinRegTTest. (Be careful to select

LinRegTTest as some calculators may also have a different item called LinRegTInt.)

Step 3. On the LinRegTTest input screen enter: Xlist: L1 ; Ylist: L2 ; Freq: 1

Step 4. On the next line, at the prompt β or ρ, highlight "= 0" and press ENTER

Step 5. Leave the line for "RegEq:" blank

Step 6. Highlight Calculate and press ENTER.

Available for free at Connexions <http://cnx.org/content/col10522/1.40>


533

Figure 12.10

The output screen contains a lot of information. For now we will focus on a few items from the output, and

will return later to the other items.

The second line says y=a+bx. Scroll down to find the values a=-173.513, and b=4.8273 ; the equation of the

^

best fit line is y= −173.51 + 4.83x

The two items at the bottom are r2 = .43969 and r=.663. For now, just note where to find these values; we

will discuss them in the next two sections.

Graphing the Scatterplot and Regression Line

Step 1. We are assuming your X data is already entered in list L1 and your Y data is in list L2

Step 2. Press 2nd STATPLOT ENTER to use Plot 1

Step 3. On the input screen for PLOT 1, highlight On and press ENTER

Step 4. For TYPE: highlight the very first icon which is the scatterplot and press ENTER

Step 5. Indicate Xlist: L1 and Ylist: L2

Step 6. For Mark: it does not matter which symbol you highlight.

Step 7. Press the ZOOM key and then the number 9 (for menu item "ZoomStat") ; the calculator will fit the

window to the data

Step 8. To graph the best fit line, press the "Y=" key and type the equation -173.5+4.83X into equation Y1.

(The X key is immediately left of the STAT key). Press ZOOM 9 again to graph it.

Step 9. Optional: If you want to change the viewing window, press the WINDOW key. Enter your desired

window using Xmin, Xmax, Ymin, Ymax

**With contributions from Roberta Bloom

Available for free at Connexions <http://cnx.org/content/col10522/1.40>

534

CHAPTER 12. LINEAR REGRESSION AND CORRELATION

12.6 Correlation Coefficient and Coefficient of Determination6

12.6.1 The Correlation Coefficient r

Besides looking at the scatter plot and seeing that a line seems reasonable, how can you tell if the line is a

good predictor? Use the correlation coefficient as another indicator (besides the scatterplot) of the strength

of the relationship between x and y.

The correlation coefficient, r, developed by Karl Pearson in the early 1900s, is a numerical measure of the

strength of association between the independent variable x and the dependent variable y.

The correlation coefficient is calculated as

n · Σx · y − (Σx) · (Σy)

r =

(12.6)

n · Σx2 − (Σx)2 · n · Σy2 − (Σy)2

where n = the number of data points.

If you suspect a linear relationship between x and y, then r can measure how strong the linear relationship

is.

What the VALUE of r tells us:

• The value of r is always between -1 and +1: −1 ≤ r ≤ 1.

• The size of the correlation r indicates the strength of the linear relationship between x and y. Values

of r close to -1 or to +1 indicate a stronger linear relationship between x and y.

• If r = 0 there is absolutely no linear relationship between x and y (no linear correlation).

• If r = 1, there is perfect positive correlation. If r = −1, there is perfect negative correlation. In both

these cases, all of the original data points lie on a straight line. Of course, in the real world, this will

not generally happen.

What the SIGN of r tells us

• A positive value of r means that when x increases, y tends to increase and when x decreases, y tends

to decrease (positive correlation).

• A negative value of r means that when x increases, y tends to decrease and when x decreases, y tends

to increase (negative correlation).

• The sign of r is the same as the sign of the slope, b, of the best fit line.

NOTE: Strong correlation does not suggest that x causes y or y causes x. We say "correlation does

not imply causation." For example, every person who learned math in the 17th century is dead.

However, learning math does not necessarily cause death!

6This content is available online at <http://cnx.org/content/m17092/1.12/>.

Available for free at Connexions <http://cnx.org/content/col10522/1.40>
